| Application | Pipe Lines Connect |
| Colour | Black (BK) |

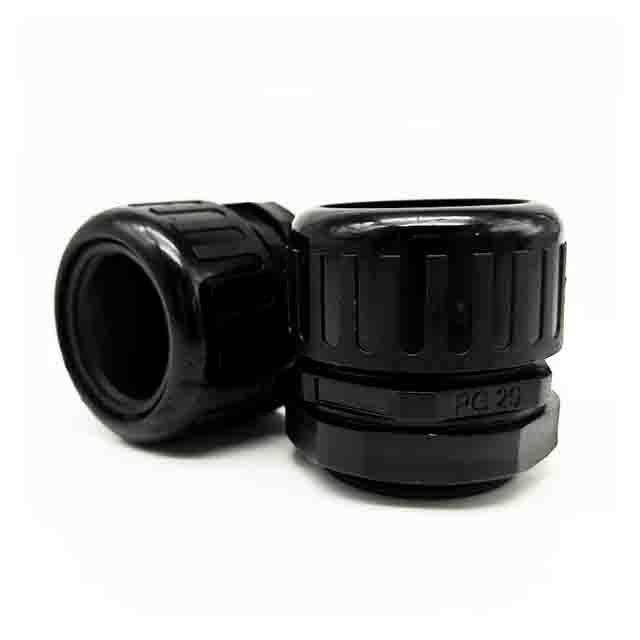

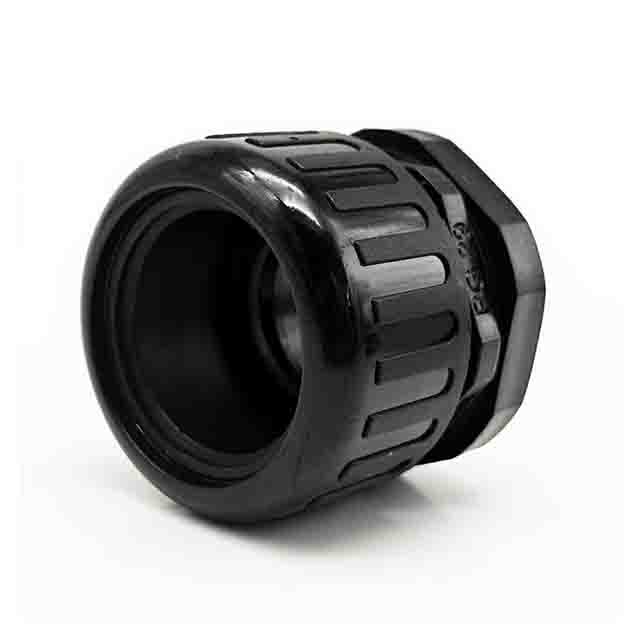

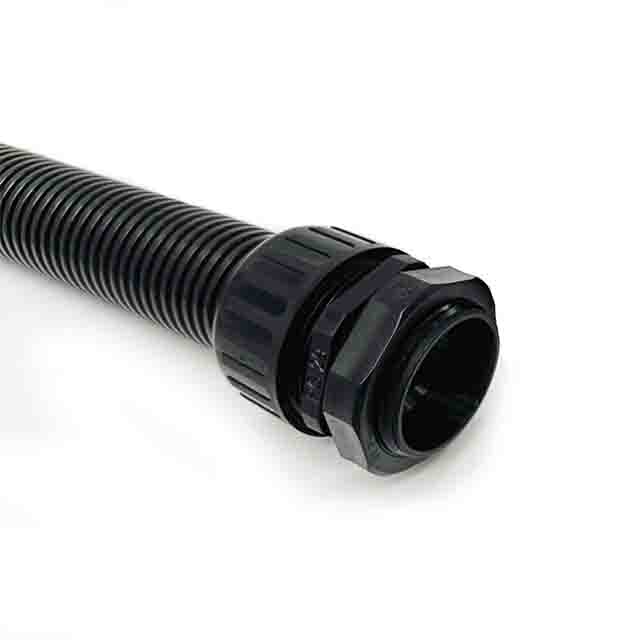

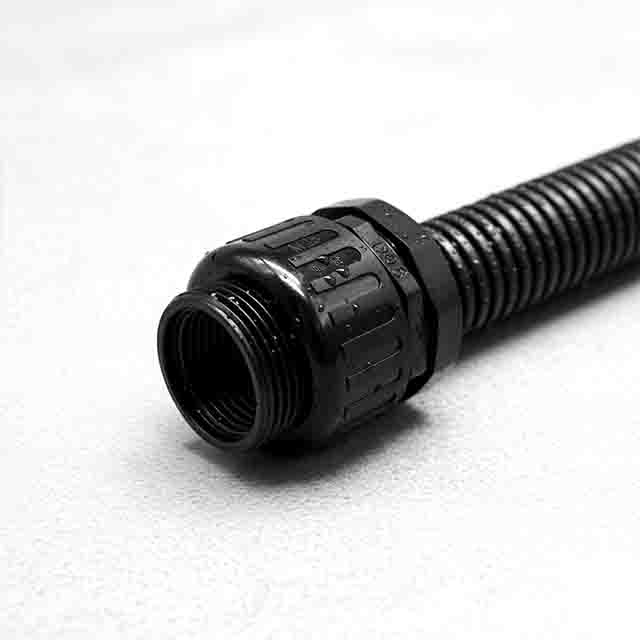

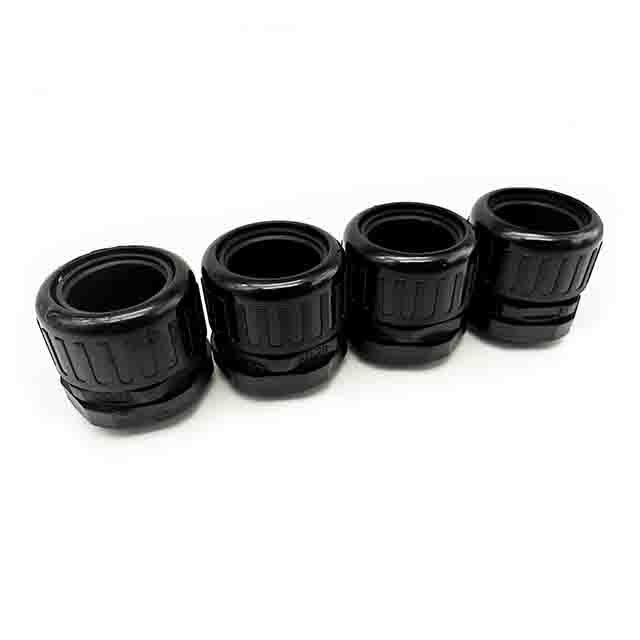

| Product Family | Corrugated Conduit Waterproof Connector |
| Temperature resistance | -40℃~+100℃ |
| Specifications | RoHS、CE、Reach、UL94V-2 |
Unlike standard fittings, our Liquid-Tight Series features a multi-layer sealing architecture designed to block moisture, oil, and dust from entering the conduit system.
Superior Material: Crafted from premium UV-stabilized Nylon PA6, ensuring it won't crack or corrode in wet or salty conditions.
Marine & Offshore: Shipboard wiring, docks, and coastal infrastructure exposed to salt spray.
Outdoor Lighting & Signage: IP68 protection for LED displays, street lights, and architectural lighting.
Water Treatment Facilities: Pumps, valves, and control systems in humid or submerged areas.
Food & Beverage Processing: Designed to withstand high-pressure "clean-in-place" (CIP) wash-down procedures.
Car Wash Systems: Protection against continuous water exposure and detergents.
| TYPE | Thread outer diameter (mm) | Thread inner diameter (mm) | Thread length (mm) | Max O.D. AG(mm) |
| AD10-M12*1.5 | 12 | 8 | 10 | 20 |
| AD10-M16*1.5 | 16 | 11.5 | 10 | 24 |
| AD13-M16*1.5 | 16 | 11.5 | 11.5 | 24 |
| AD13*M18*1.5 | 18 | 13.5 | 11.5 | 24 |
| AD13-M20*1.5 | 20 | 15 | 11.5 | 29 |
| AD15.8-M16*1.5 | 16 | 11.5 | 11.5 | 29 |
| AD15.8-M18*1.5 | 18 | 13 | 11.5 | 29 |
| AD15.8-M20*1.5 | 20 | 15 | 11.5 | 29 |
| AD15.8-M22*1.5 | 22 | 17.3 | 11.5 | 29 |
| AD18.5-M16*1.5 | 16 | 11.5 | 12 | 30 |
| AD18.5-M18*1.5 | 18 | 13.5 | 12 | 30 |
| AD18.5-M20*1.5 | 20 | 15.5 | 12 | 30 |
| AD18.5-M22*1.5 | 22 | 17.3 | 12 | 30 |
| AD21.2-M16*1.5 | 16 | 11.5 | 15 | 35 |
| AD21.2-M20*1.5 | 20 | 15.5 | 12.6 | 35 |
| AD21.2-M22*1.5 | 22 | 17.5 | 12.6 | 35 |
| AD21.2-M25*1.5 | 25 | 20 | 14 | 35 |
