UV Resistance Corrugated Conduit


Availability:

Quantity:

Inquire Add to Basket

Product Description

Application	Lightweight and flexible with added UV protection. To be used in applications with high levels of UV exposure and also to protect cables from crush damage.
Colour	Black (BK)
Product Family	UV stabilized corrugated tubing
UV-Stabilised	YES
Halogen-free	YES
Specifications	RoHS、CE、Reach、UL 94

Our premium corrugated conduit is specifically designed to combat the damaging effects of prolonged sun exposure, ensuring your wiring remains safe and operational for years to come. Unlike standard conduits that degrade, crack, and become brittle under UV radiation, FuYuXuan maintains its structural integrity and protective qualities.

Key Features & Benefits

Exceptional UV Resistance
Robust Mechanical Protection
Durable & Long-Lasting
Wide Temperature Range
Easy Installation

Product Application

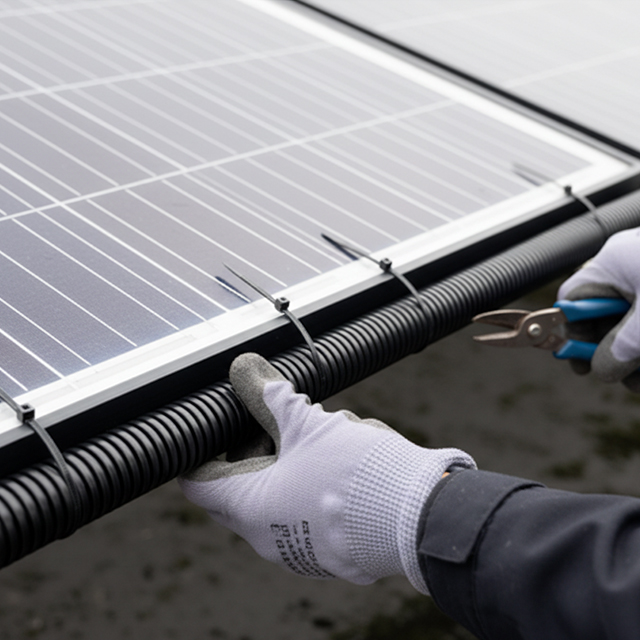

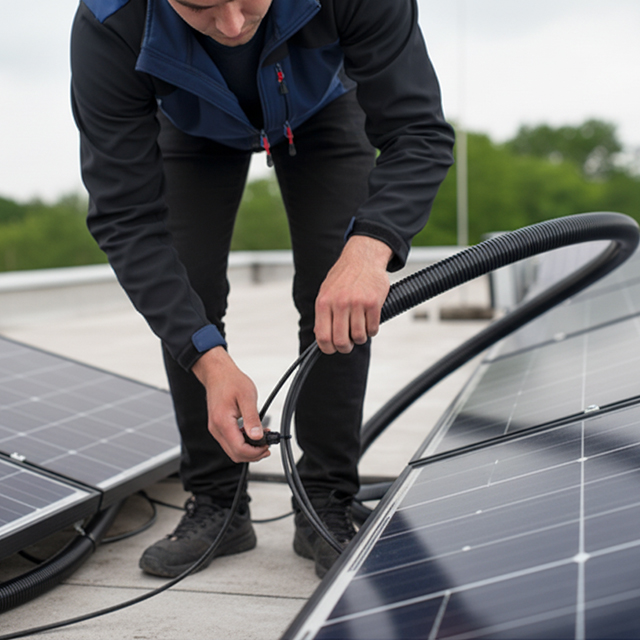

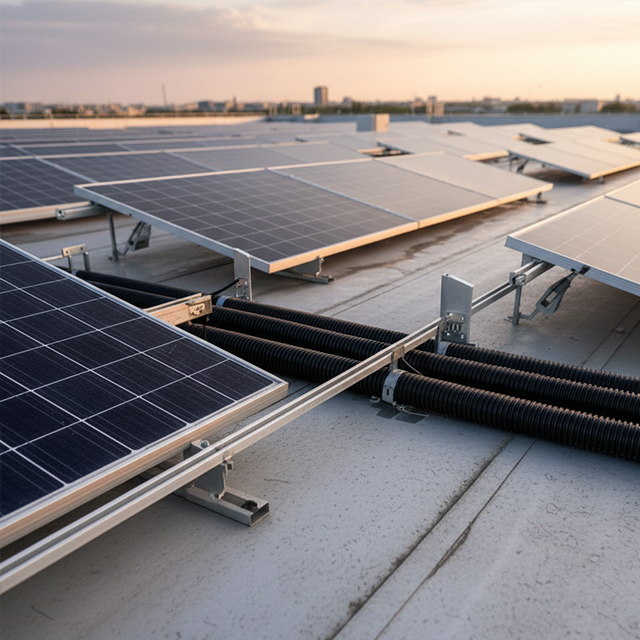

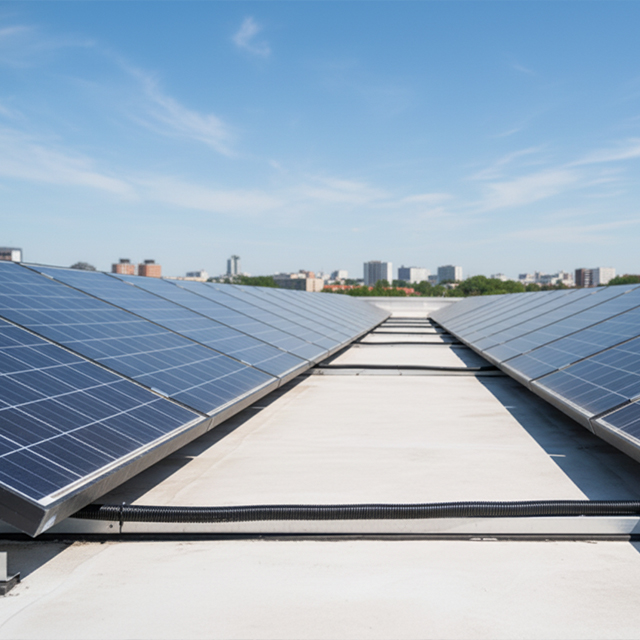

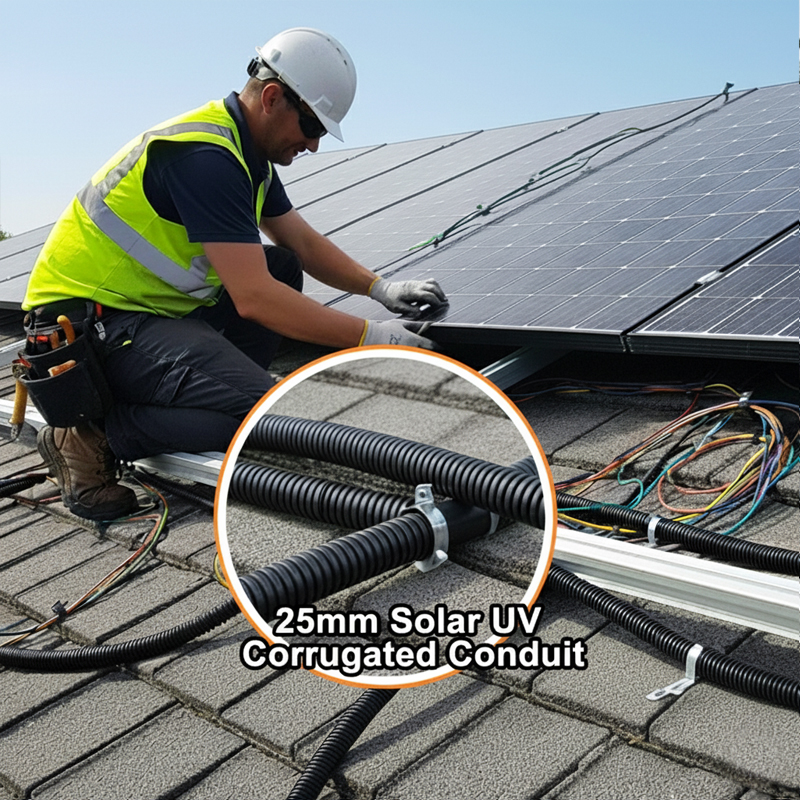

Solar panel wiring protection
Outdoor electrical conduit for gardens and landscapes
Marine and RV electrical systems
Agricultural irrigation control cables
Telecommunications cable management
Industrial outdoor cable routing
Security camera wiring conduit

Size Chart

参数图1

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
FYX-7U	–	4.6±0.40	7.0±0.40	500
FYX-7.6U	–	5.2±0.40	7.6±0.40	500
FYX-8.5U	–	5.5±0.40	8.5±0.40	400
FYX-10U	1/4″	7.0±0.40	10.0±0.40	200
FYX-11.5U	–	8.5±0.40	11.5±0.40	200
FYX-12U	–	9.0±0.40	12.0±0.40	200
FYX-13U	–	10.0±0.40	13.0±0.40	200
FYX-14U	–	11.0±0.40	14.0±0.40	200
FYX-15.8U	1/2″	12.0±0.40	15.8±0.40	200
FYX-16.8U	–	13.0±0.40	16.8±0.40	200
FYX-18.5U	–″	14.3±0.40	18.5±0.40	150
FYX-20U	–	16.0±0.40	20.0±0.40	100
FYX-21.2U	–	17.0±0.40	21.2±0.40	100
FYX-22.2U	–	19.0±0.40	22.2±0.40	100
FYX-25U	1″	20.0±0.40	25.0±0.40	100
FYX-27.5U	–	21.0±0.40	27.5±0.40	100
FYX-28.5U	–	23.0±0.40	28.5±0.40	100
FYX-32U	–	25.0±0.40	32.0±0.40	50
FYX-34.5U	–	29.0±0.40	34.5±0.40	50
FYX-42.5U	–	36.0±0.40	42.5±0.40	50
FYX-54.5U	–	48.0±0.40	54.5±0.40	25
