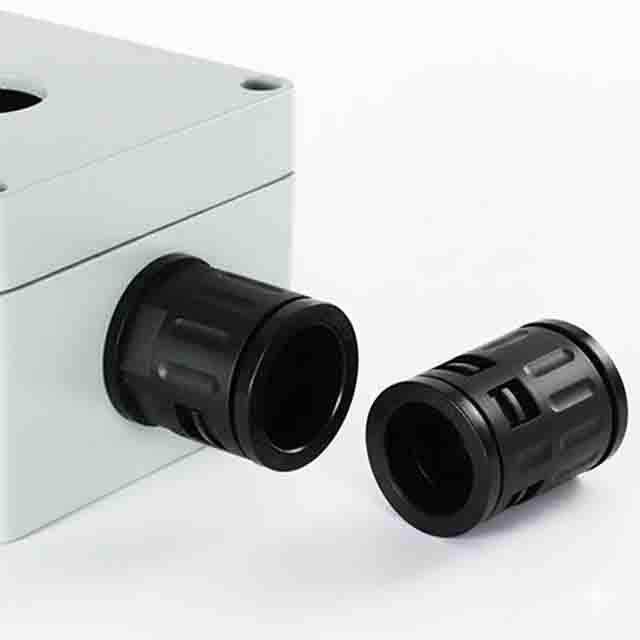

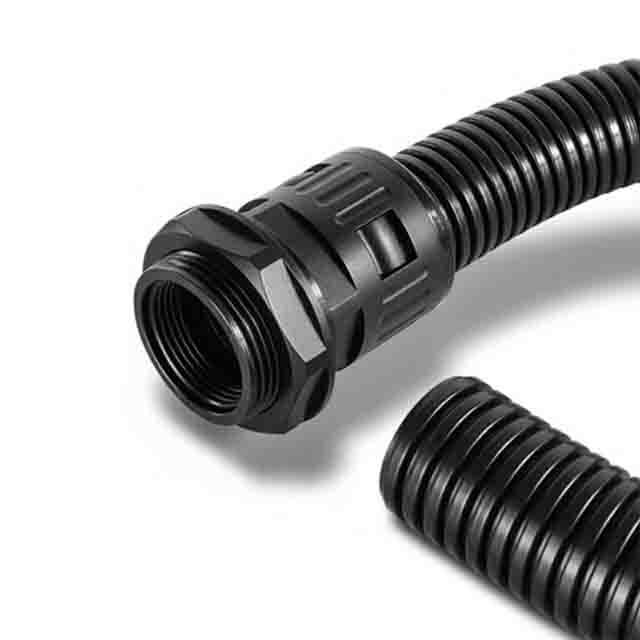

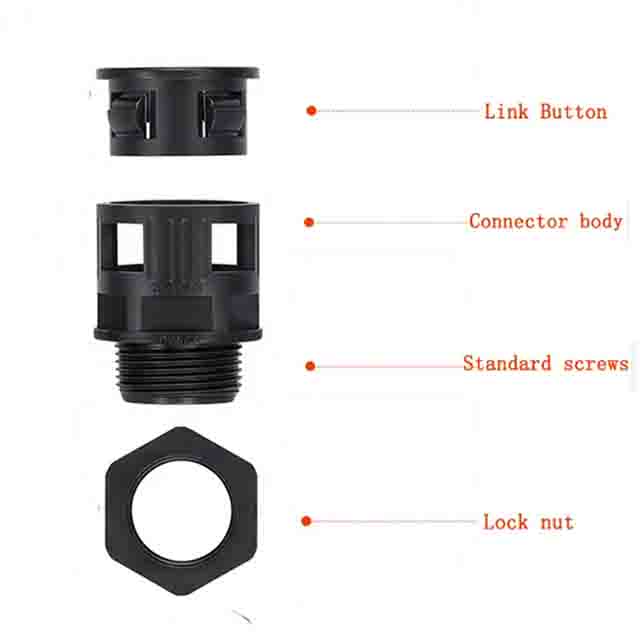

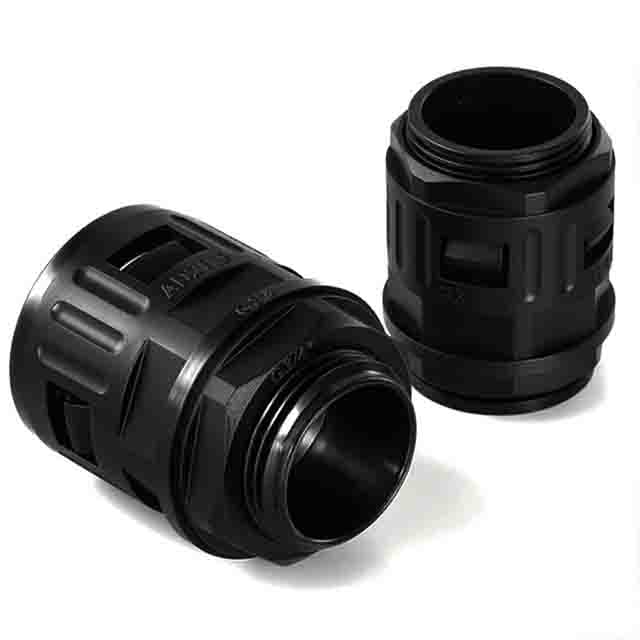

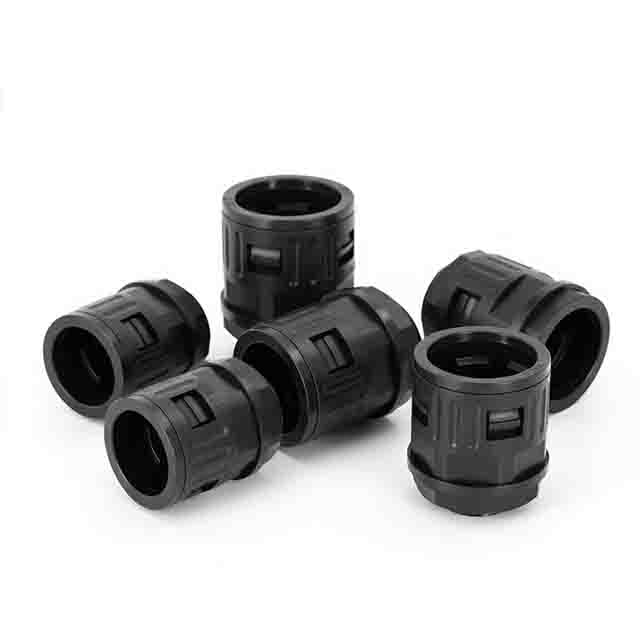

Flexible Conduit Quick Connector


Availability:

Quantity:

Inquire Add to Basket

Product Description

Application	Pipe Lines Connect
Colour	Black (BK)
Product Family	Corrugated Conduit Quick Connector
Temperature resistance - static	-40℃～+100℃,short term 120℃
Temperature resistance - dynamic	-20℃～+80℃,short term 100℃
Specifications	RoHS、CE、Reach、UL94V-2

Our plastic bellows connector is a high-performance flexible joining component designed for lightweight, corrosion-resistant pipeline systems. It serves as a reliable, cost-effective link for fluid and gas transmission in non-high-pressure environments, ensuring leak-proof sealing and long-term structural stability.

Key Features & Benefits

Tool-Free Quick Installatio
Superior Corrosion & Chemical Resistance
Lightweight & Cost-Efficient
Flexible Adaptability
Eco-Friendly & Safe

Product Application

Residential kitchen/bathroom sink drains
Building electrical room ceiling cavity cable protection pipes
Park green belt sprinkler pipelines
Large-scale farmland sprinkler main-branch pipes
Chemical laboratory low-pressure reagent delivery pipes
Solar water heater heat collection pipe-water tank connections
Solar water heater heat collection pipe-water tank connections

Size Chart

TYPE	Thread outer diameter (mm)	Thread inner diameter (mm)	Thread length (mm)	Product total length (mm)	Maximum outer diameter (mm)
AD10-M10*1.5	10	5.5	9	34	18
AD10-M12*1.5	12	8	10	34	19
AD10-M16*1.5	16	11.5	10	34	24
AD13-M12*1.5	12	8	11	37	21.5
AD13-M16*1.5	16	11.5	11.5	37	24
AD13-M18*1.5	18	13.5	11.5	37	24
AD13-M20*1.5	20	15	11.5	37	29
AD15.8-M16*1.5	16	11.5	12	40	25
AD15.8-M18*1.5	18	13	11.5	40	25
AD15.8-M20*1.5	20	15	11.5	40	29
AD18.5-M18*1.5	18	13.5	12	41	30
AD18.5-M20*1.5	20	15.5	12	41	30
AD18.5-M22*1.5	22	17.3	12	41	30
AD21.2-M20*1.5	20	15.5	13	45	31
AD21.2-M22*1.5	22	17.5	13	45	31
AD21.2-M24*1.5	24	19.5	13	45	31
AD21.2-M25*1.5	25	20	13	45	35
AD25-M25*1.5	25	20	13.5	47	35
AD28.5-M25*1.5	25	20	13.5	48	38
AD28.5-M27*1.5	27	22	13.5	48	38
AD28.5-M27*2.0	27	22	13.5	48	38
AD28.5-M30*1.5	30	25.5	13.5	48	38
AD28.5-M30*2.0	30	25.5	13.5	48	38
AD28.5-M32*1.5	32	27	13.5	48	42
AD34.5-M32*1.5	32	27	14.5	51	45
AD34.5-M36*2.0	36	29	14.3	51	46
AD34.5-M36*1.5	36	29	14.3	51	46
AD34.5-M40*1.5	40	34	14.3	51	50
AD42.5-M40*1.5	40	34	16	55	55
AD42.5-M42*1.5	42	34	15	53	59
AD42.5-M48*1.5	48	42	15	53	65
AD42.5-M48*2.0	48	42	15	53	65
AD42.5-M50*1.5	50	44	16	55	62
AD54.5-M50*1.550	44	15	55	55	66
AD54.5-M63*1.5	63	55	15	55	82
AD10-PG7	12.3	9	9	34	19
AD13-PG9	15	11	12	38	24
AD13-PG11	18.5	14	12	38	26
AD15.8-PG11	18.5	14	12	40	27
AD18.5-PG11	18.5	14	12.5	41	29
AD21.2-PG16	22	17.5	12.5	45	33
AD28.5-PG21	28	23	13.5	48	39
AD34.5-PG29	36.7	31	15.5	51	50
AD42.5-PG36	47	41	16	55	57
AD54.5-PG48	59	52	16	55	73
AD10-G1/4	13.1	10	10	34	20
AD13-G3/8	16.6	11.5	11.5	36	24
AD15.8-G3/8	16.6	11.5	12	40	25
AD15.8-G1/2	20.8	15	12	40	27
AD18.5-G1/2	20.8	15	12.5	42	28
AD21.2-G1/2	20.8	15	12.5	45	32
AD21.2-G3/4	26.2	20	12.5	45	37
AD25-G3/4	26.2	20	13	47	37
AD28.5-G3/4	26.2	20	13	47	37
AD34.5-G1	33	26	15	52	47
AD42.5-G1-1/4	41.5	34	15	54	57
AD42.5-G1-1/2	47.5	41	15	54	65
AD54.5-G1-1/2	47.5	41	16	55	69
AD54.5-G2	59.5	51	16	55	80
