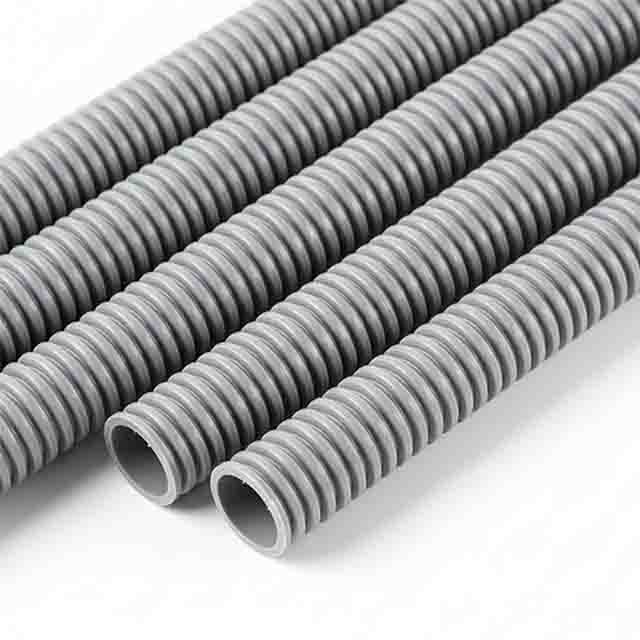

PE Corrugated Conduit


Availability:

Quantity:

Inquire Add to Basket

Product Description

Application	Featuring extreme flexibility and superior moisture resistance, it is ideal for budget-conscious projects requiring reliable insulation and environmental shielding.
Colour	Black (BK)
Product Family	UV stabilized corrugated tubing
UV-Stabilised	YES
Halogen-free	YES
Specifications	RoHS、CE、Reach、UL 94

Our PE Corrugated Conduit is the go-to solution for light-duty cable routing and protection. Featuring extreme flexibility and superior moisture resistance, it is ideal for budget-conscious projects requiring reliable insulation and environmental shielding.

Key Features & Benefits

High Flexibility: Extremely easy to manipulate around tight corners and obstacles without kinking.
Waterproof & Moisture-Proof: Provides an excellent barrier against water ingress and humidity.
Maximum Economy: The most cost-efficient material for large-scale cable management projects.
Good Dielectric Properties: High insulation resistance for low-voltage electrical protection.

Product Application

Underground Ducts: Protecting irrigation wires or low-voltage landscaping lights.
Agriculture & Gardening: Shielding sensor cables and outdoor power lines from soil moisture.
Temporary Power Solutions: Protecting cables at construction sites or outdoor events.

Size Chart

参数图1

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
FYX-7E	–	4.6±0.40	7.0±0.40	500
FYX-7.6E	–	5.2±0.40	7.6±0.40	500
FYX-8.5E	–	5.5±0.40	8.5±0.40	400
FYX-10E	1/4″	7.0±0.40	10.0±0.40	200
FYX-11.5E	–	8.5±0.40	11.5±0.40	200
FYX-12E	–	9.0±0.40	12.0±0.40	200
FYX-13E	–	10.0±0.40	13.0±0.40	200
FYX-14E	–	11.0±0.40	14.0±0.40	200
FYX-15.8E	1/2″	12.0±0.40	15.8±0.40	200
FYX-16.8E	–	13.0±0.40	16.8±0.40	200
FYX-18.5E	–″	14.3±0.40	18.5±0.40	150
FYX-20E	–	16.0±0.40	20.0±0.40	100
FYX-21.2E	–	17.0±0.40	21.2±0.40	100
FYX-22.2E	–	19.0±0.40	22.2±0.40	100
FYX-25E	1″	20.0±0.40	25.0±0.40	100
FYX-27.5E	–	21.0±0.40	27.5±0.40	100
FYX-28.5E	–	23.0±0.40	28.5±0.40	100
FYX-32E	–	25.0±0.40	32.0±0.40	50
FYX-34.5E	–	29.0±0.40	34.5±0.40	50
FYX-42.5E	–	36.0±0.40	42.5±0.40	50
FYX-54.5E	–	48.0±0.40	54.5±0.40	25
