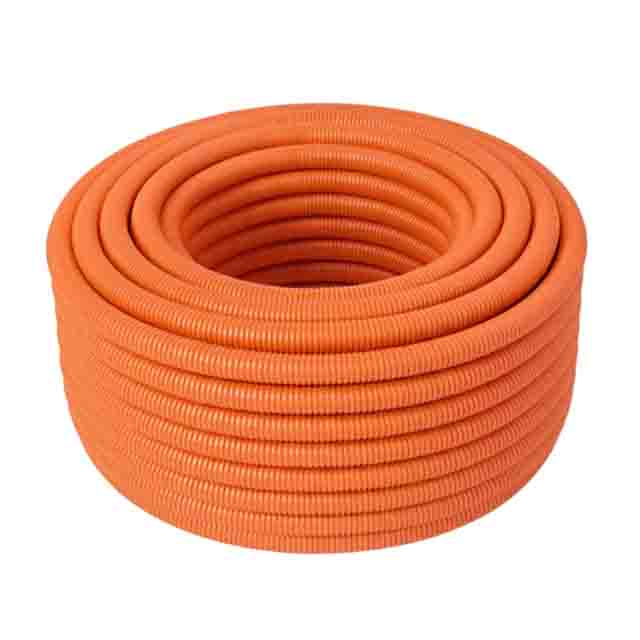

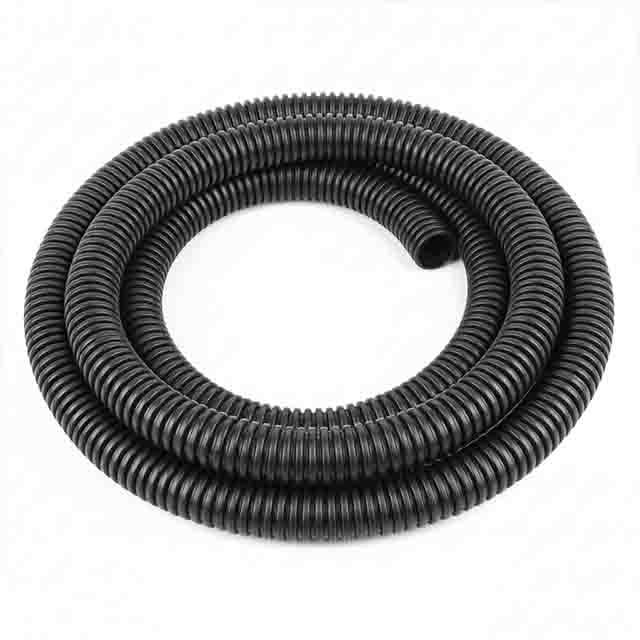

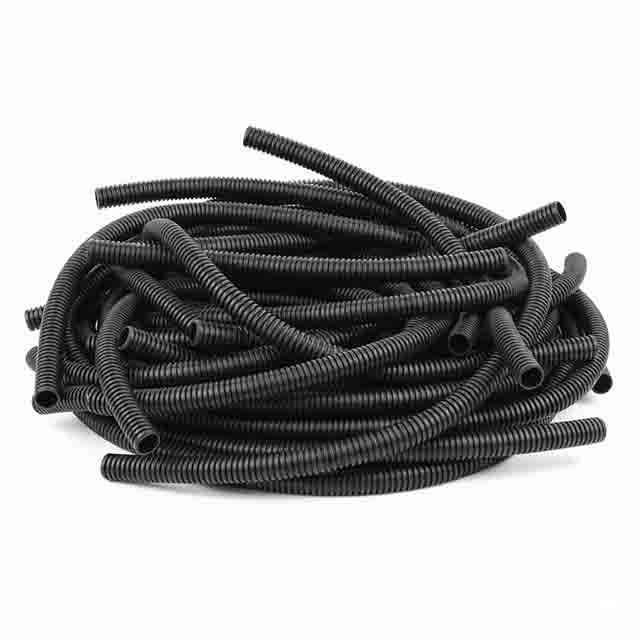

PA Corrugated Conduit


Availability:

Quantity:

Inquire Add to Basket

Product Description

Application	Known for its exceptional mechanical strength and flexibility, this conduit provides a reliable shield for complex wiring systems in the most demanding environments.
Colour	Black (BK)
Product Family	UV stabilized corrugated tubing
UV-Stabilised	YES
Halogen-free	YES
Specifications	RoHS、CE、Reach、UL 94

Our PA (Nylon) Corrugated Conduit is engineered for high-end industrial applications that require maximum durability. Known for its exceptional mechanical strength and flexibility, this conduit provides a reliable shield for complex wiring systems in the most demanding environments. FuYuXuan maintains its structural integrity and protective qualities.

Key Features & Benefits

Superior Durability: High impact resistance and excellent fatigue life (resists cracking even after millions of bends).
Chemical & Oil Resistance: Highly resistant to fuels, lubricating oils, and a wide range of industrial solvents.
Self-Extinguishing: Excellent flame-retardant properties (UL94-V0/V2 available), ensuring safety in high-heat zones.
Wide Temperature Range: Maintains performance from -40°C to +150°C.

Product Application

Robotics & Automation: Dynamic cable protection for moving robot arms.
Automotive Industry: Engine bay wiring harnesses and high-vibration areas.
Railway & Transit: Wiring protection for rolling stock and signaling systems.

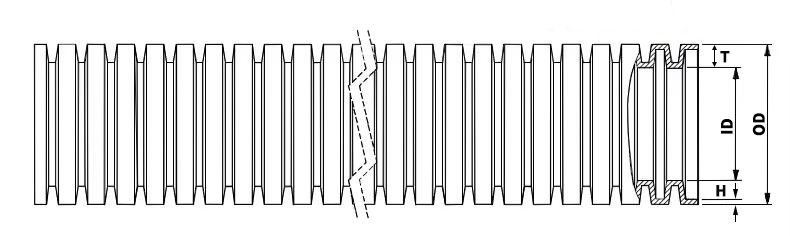

Size Chart

参数图1

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
FYX-7A	–	4.6±0.40	7.0±0.40	500
FYX-7.6A	–	5.2±0.40	7.6±0.40	500
FYX-8.5A	–	5.5±0.40	8.5±0.40	400
FYX-10A	1/4″	7.0±0.40	10.0±0.40	200
FYX-11.5A	–	8.5±0.40	11.5±0.40	200
FYX-12A	–	9.0±0.40	12.0±0.40	200
FYX-13A	–	10.0±0.40	13.0±0.40	200
FYX-14A	–	11.0±0.40	14.0±0.40	200
FYX-15.8A	1/2″	12.0±0.40	15.8±0.40	200
FYX-16.8A	–	13.0±0.40	16.8±0.40	200
FYX-18.5A	–″	14.3±0.40	18.5±0.40	150
FYX-20A	–	16.0±0.40	20.0±0.40	100
FYX-21.2A	–	17.0±0.40	21.2±0.40	100
FYX-22.2A	–	19.0±0.40	22.2±0.40	100
FYX-25A	1″	20.0±0.40	25.0±0.40	100
FYX-27.5A	–	21.0±0.40	27.5±0.40	100
FYX-28.5A	–	23.0±0.40	28.5±0.40	100
FYX-32A	–	25.0±0.40	32.0±0.40	50
FYX-34.5A	–	29.0±0.40	34.5±0.40	50
FYX-42.5A	–	36.0±0.40	42.5±0.40	50
FYX-54.5A	–	48.0±0.40	54.5±0.40	25
