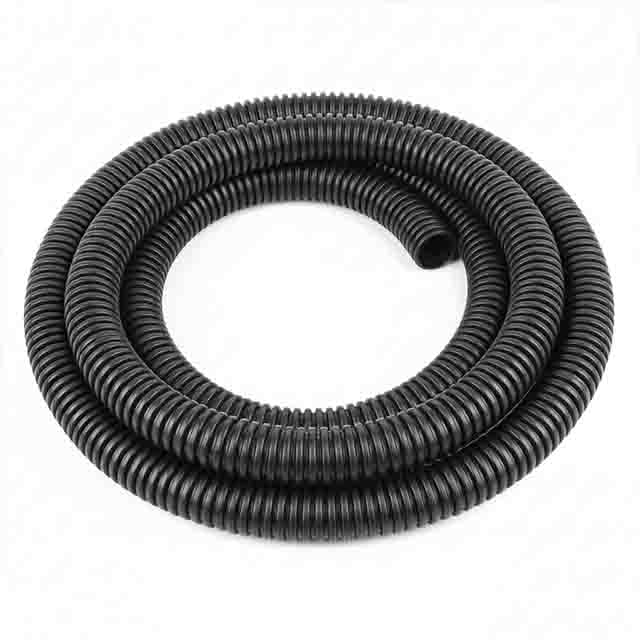

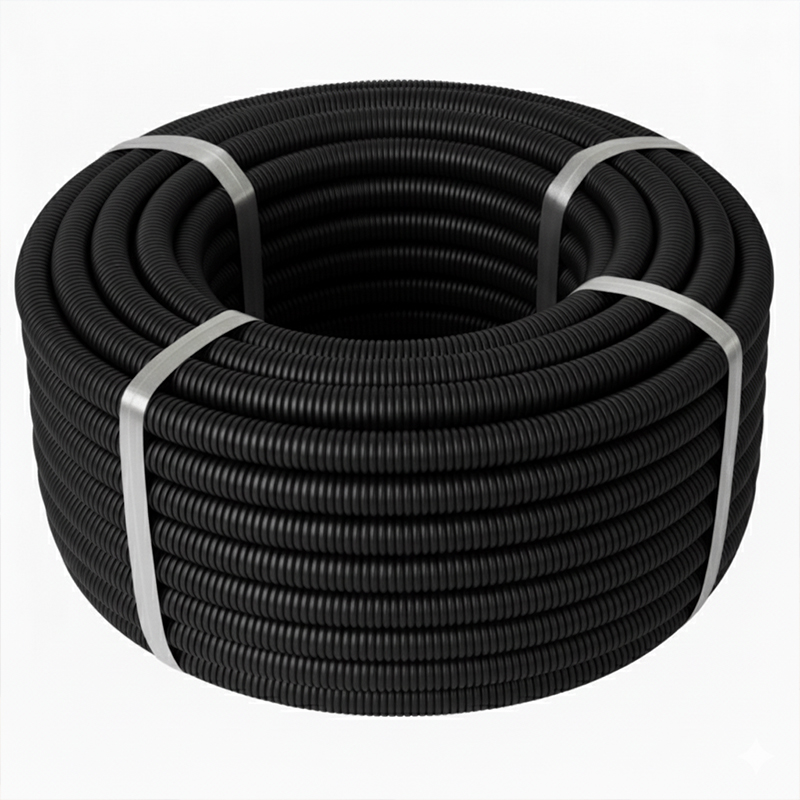

PP Corrugated Conduit


Availability:

Quantity:

Inquire Add to Basket

Product Description

Application	It is a lightweight, halogen-free solution designed for general-purpose cable management where chemical resistance and ease of installation are priorities.
Colour	Black (BK)
Product Family	UV stabilized corrugated tubing
UV-Stabilised	YES
Halogen-free	YES
Specifications	RoHS、CE、Reach、UL 94

Our PP Corrugated Conduit offers a perfect balance between performance and affordability. It is a lightweight, halogen-free solution designed for general-purpose cable management where chemical resistance and ease of installation are priorities.

Key Features & Benefits

Excellent Chemical Stability: Highly resistant to acids, alkalis, and inorganic salts.
Halogen-Free & Eco-Friendly: Produces minimal toxic smoke in the event of fire, making it safer for indoor use.
Lightweight & Flexible: Easy to cut, bend, and install, significantly reducing labor time.
UV Resistance: Optional UV-stabilized versions available for outdoor durability.

Product Application

Commercial Building: Protecting power and data cables in office ceilings or raised floors.
Household Appliances: Internal wiring protection for washing machines, dishwashers, and HVAC units.
Telecommunications: Organizing and shielding fiber optic or copper cables in cabinets.

Size Chart

参数图1

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
FYX-7P	–	4.6±0.40	7.0±0.40	500
FYX-7.6P	–	5.2±0.40	7.6±0.40	500
FYX-8.5P	–	5.5±0.40	8.5±0.40	400
FYX-10P	1/4″	7.0±0.40	10.0±0.40	200
FYX-11.5P	–	8.5±0.40	11.5±0.40	200
FYX-12P	–	9.0±0.40	12.0±0.40	200
FYX-13P	–	10.0±0.40	13.0±0.40	200
FYX-14P	–	11.0±0.40	14.0±0.40	200
FYX-15.8P	1/2″	12.0±0.40	15.8±0.40	200
FYX-16.8P	–	13.0±0.40	16.8±0.40	200
FYX-18.5P	–″	14.3±0.40	18.5±0.40	150
FYX-20P	–	16.0±0.40	20.0±0.40	100
FYX-21.2P	–	17.0±0.40	21.2±0.40	100
FYX-22.2P	–	19.0±0.40	22.2±0.40	100
FYX-25P	1″	20.0±0.40	25.0±0.40	100
FYX-27.5P	–	21.0±0.40	27.5±0.40	100
FYX-28.5P	–	23.0±0.40	28.5±0.40	100
FYX-32P	–	25.0±0.40	32.0±0.40	50
FYX-34.5P	–	29.0±0.40	34.5±0.40	50
FYX-42.5P	–	36.0±0.40	42.5±0.40	50
FYX-54.5P	–	48.0±0.40	54.5±0.40	25
