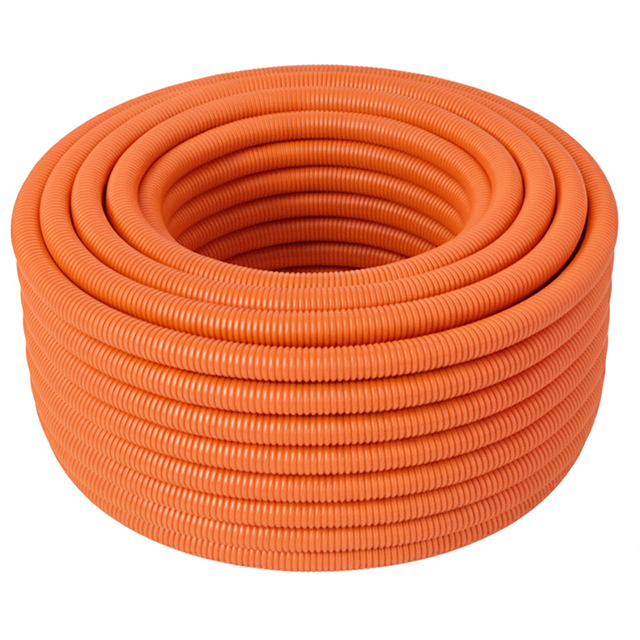

Automotive Wiring Harness Tube


Availability:

Quantity:

Inquire Add to Basket

Product Description

Application	Automotive Wiring Harness, Machine tool machinery, Automatic instrumentation, Motor , Railway locomotive, Electrical equipment, protection cable and wire from external wear and insulation.
Colour	Orange、Black、Customized
Product Family	UV stabilized corrugated tubing
Halogen-free	YES
Specifications	RoHS、CE、Reach、UL94

In the demanding world of automotive engineering, the integrity of electrical systems is paramount. Our advanced automotive wiring harness tube provides an unparalleled level of protection for critical wiring harnesses, ensuring long-term reliability and peak performance for vehicles of all types. Engineered to withstand the harshest operating conditions, our corrugated tubing is the ultimate solution for safeguarding electrical infrastructure.

Key Features & Benefits

Extreme Temperature Resistance
Chemical and Fluid Resistance
Vibration and Noise Reduction
UV and Weather Resistance
Flexible and Easy to Install
Corrugated Design
Self-Extinguishing (Optional)

Product Application

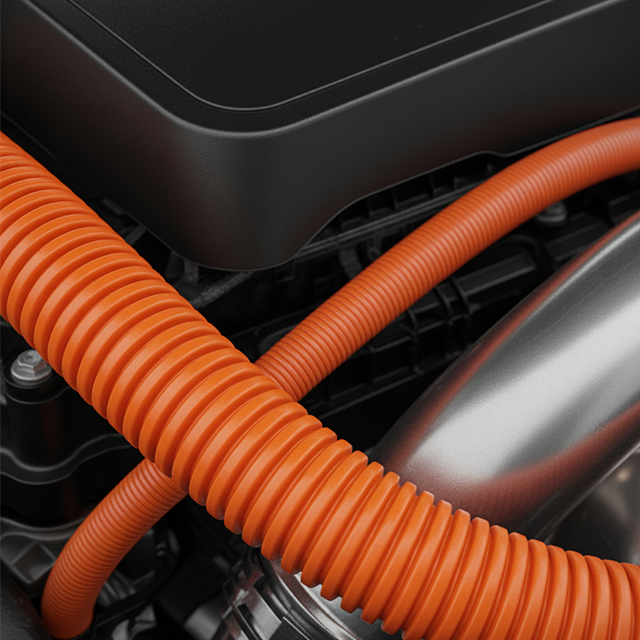

Engine Compartments
Chassis and Underbody
Interior Cabins:
Battery and Power Distribution

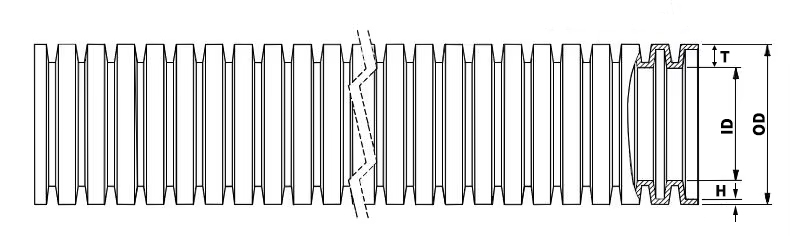

Size Chart

参数图1

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
FYX-7U	–	4.6±0.40	7.0±0.40	500
FYX-7.6U	–	5.2±0.40	7.6±0.40	500
FYX-8.5U	–	5.5±0.40	8.5±0.40	400
FYX-10U	1/4″	7.0±0.40	10.0±0.40	200
FYX-11.5U	–	8.5±0.40	11.5±0.40	200
FYX-12U	–	9.0±0.40	12.0±0.40	200
FYX-13U	–	10.0±0.40	13.0±0.40	200
FYX-14U	–	11.0±0.40	14.0±0.40	200
FYX-15.8U	1/2″	12.0±0.40	15.8±0.40	200
FYX-16.8U	–	13.0±0.40	16.8±0.40	200
FYX-18.5U	–″	14.3±0.40	18.5±0.40	150
FYX-20U	–	16.0±0.40	20.0±0.40	100
FYX-21.2U	–	17.0±0.40	21.2±0.40	100
FYX-22.2U	–	19.0±0.40	22.2±0.40	100
FYX-25U	1″	20.0±0.40	25.0±0.40	100
FYX-27.5U	–	21.0±0.40	27.5±0.40	100
FYX-28.5U	–	23.0±0.40	28.5±0.40	100
FYX-32U	–	25.0±0.40	32.0±0.40	50
FYX-34.5U	–	29.0±0.40	34.5±0.40	50
FYX-42.5U	–	36.0±0.40	42.5±0.40	50
FYX-54.5U	–	48.0±0.40	54.5±0.40	25
