Reliable wiring infrastructure is the backbone of any modern building, vehicle, or industrial machine. While the cables carry the power and data, they are vulnerable to damage without proper shielding. This is where corrugated conduit comes in.

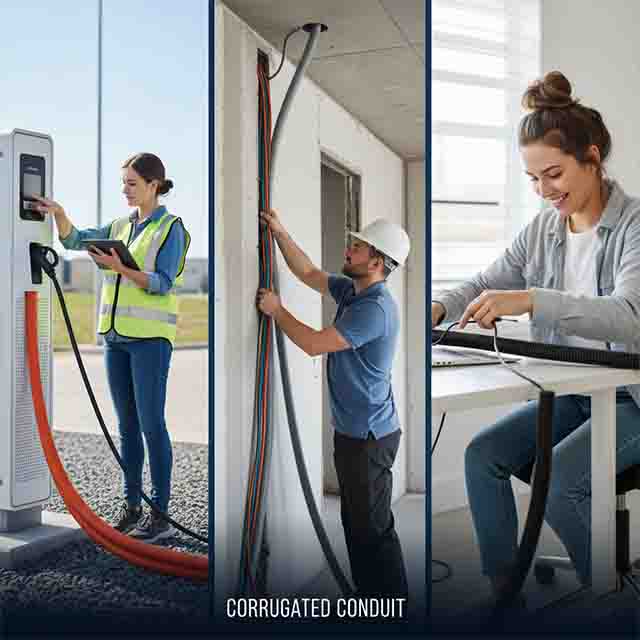

Also known as flexible tubing or corrugated pipe, this ribbed protective channel is a staple in electrical work. Whether you are an engineer designing an EV charging network, a contractor wiring a commercial building, or a DIY enthusiast tidying up cables in a home office, understanding how to select and install the right conduit is essential.
This guide breaks down everything you need to know about corrugated conduit, from material differences and color codes to installation best practices.

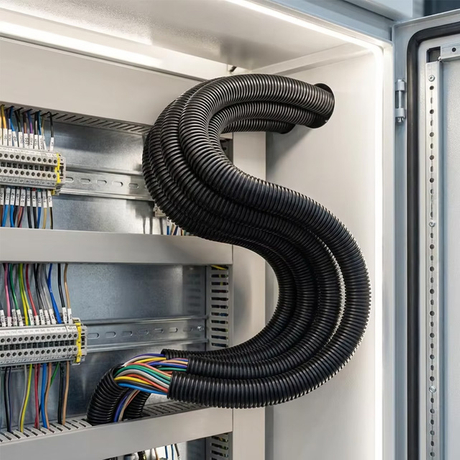

Corrugated conduit is a protective tubing characterized by a ribbed exterior. This unique profile gives the tube two distinct advantages: excellent flexibility and high structural strength (crush resistance).
Unlike rigid smooth pipes, the ribs allow the conduit to bend around corners and snake through tight voids without kinking or breaking. It is typically manufactured from durable plastics like PVC, Polyethylene (HDPE), or Nylon (Polyamide), though metallic versions exist for heavy industrial use.
The primary job of corrugated conduit is cable management and protection.
Physical Defense: It stops wires from being crushed, cut, or abraded by sharp edges.
Environmental Shielding: Specific materials protect against UV rays, water, chemicals, and oils.
Easy Routing: It simplifies running wires through complex geometries where rigid pipe would require too many fittings.
Maintenance: It allows for easier cable replacement; you can pull old wires out and push new ones in without tearing down walls.
Not all tubing is created equal. Choosing the wrong type can lead to code violations or system failure. Here is how they are categorized.
Super-Flex: Designed with a tighter rib profile to allow for a sharper bend radius, ideal for robotics or moving machinery.
LSZH (Low Smoke Zero Halogen): Critical for public spaces (hospitals, tunnels). If it burns, it does not release toxic halogen gases.
Corrugated conduit is versatile enough to be found in almost every sector:

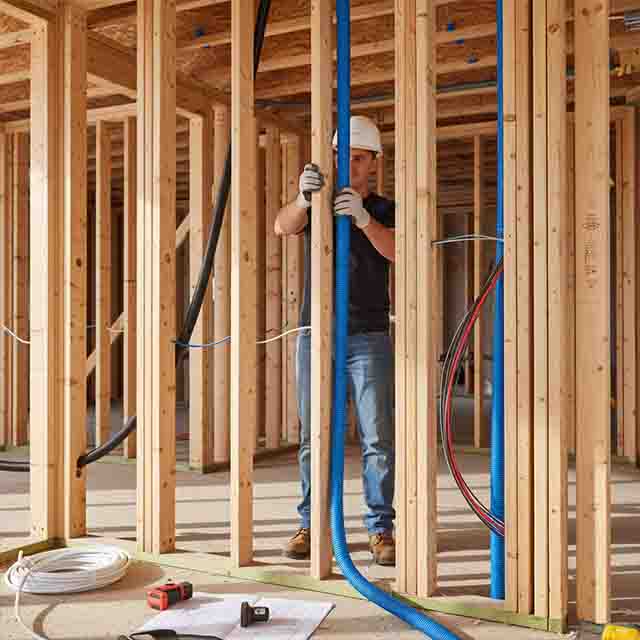

Construction & ENT: In North America, "Electrical Nonmetallic Tubing" (ENT), often called "Smurf tube" due to its blue color, is a type of corrugated PVC used inside walls and concrete slabs.
Electric Vehicles (EVs): High-voltage orange corrugated conduit is standard in EVs to protect cabling from road debris, vibration, and fluids while signaling danger to first responders.
Telecommunications: HDPE conduits protect fiber optic cables underground, allowing for long, continuous runs that guard against soil pressure and moisture.
Industrial Automation: Robots and conveyor belts use highly flexible nylon conduits to protect moving cables from abrasion and fatigue.
Color coding isn't just for aesthetics; it usually signifies voltage or application type to keep maintenance workers safe. While local codes vary, here are the common standards:
Orange: High-voltage wiring (EVs, Hybrid cars) or critical data systems.
Yellow: Caution/High-voltage or specific industrial machinery power.
Blue: Low-voltage data, communications, or ENT for indoor electrical use.
Green: Grounding/Earthing conductors.
Red: Fire alarms or emergency circuits.
Black: General purpose (usually UV stabilized for outdoor use).

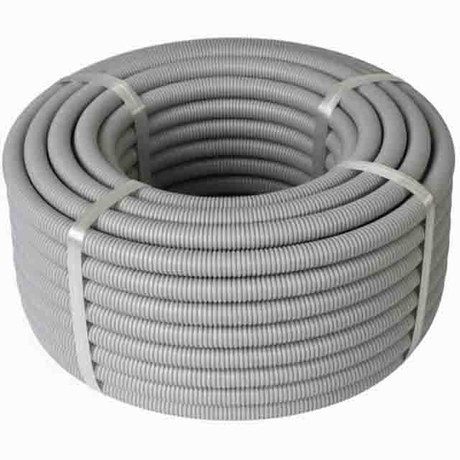

Grey: Standard electrical wiring (often PVC).
White: Sometimes used for neutral lines or sanitary environments
The Pros:
Cost-Effective: Generally cheaper than rigid metal pipe (EMT) or rigid PVC.
Versatile: Works underground, in walls, and in cars.
Installation Speed: Fewer fittings (elbows/couplings) are needed because the pipe bends itself.
The Cons:
Mechanical Strength: While tough, it is easier to crush than a steel pipe.
Heat Limits: Plastic conduits will melt in extreme heat where metal would survive.
Support Needs: Flexible conduit requires more frequent strapping/clipping to prevent sagging compared to rigid pipe.
To select the best corrugated conduit for your job, follow this checklist:
Environment: Is it indoors (PVC/ENT), outdoors (UV-rated Black PP/PA), or under the hood of a car (Nylon/PP)?
Cable Type: Are you running sensitive fiber optics (requires smooth bore) or standard power cables?
Split or Non-Split: Do you need to add wires later (Split), or do you want maximum waterproofing (Non-Split)?
Size: Do not stuff the tube full; wires need air to dissipate heat.
Certification: Does the project require UL 、CE、Reach products?
Installing corrugated conduit is DIY-friendly, but requires attention to detail.
Measure and Cut: Use a dedicated conduit cutter or a sharp utility knife. Ensure the cut is square so it sits flush in the fittings.
Fittings: Use the correct fittings (snap-in or threaded) designed specifically for corrugated tubing. Do not use plumbing fittings.
Strapping: Secure the conduit every 3 feet (or according to local code) to prevent it from drooping.
Bending: Do not force the conduit beyond its minimum bend radius, or you may stress the plastic or the wires inside.
Fishing: If using non-split conduit, use a fish tape to pull wires through after the conduit is installed for the smoothest result.
Corrugated conduit is a problem-solver. It bridges the gap between the need for tough physical protection and the reality of complex, tight, or dynamic installation environments. By selecting the correct material and adhering to color codes and safety standards, you ensure a wiring system that is safe, organized, and durable.
