| Application | As a protection wire from abrasion andinsulation, and can improve the beauty of wirebending. |
| Colour | Black (BK) |
| Product Family | Spiral Wrapping |
| Operating Temperature | -40°C ~ +80°C |
| Feature | Eco-Friendly |
Spiral wrap is a flexible, durable, and expandable tubing designed to organize, protect, and bundle multiple cables and wires into a single, neat harness. Made from high-quality materials like polyethylene (PE), polypropylene (PP), or PTFE, it features a unique spiral cut that allows for easy insertion and breakout of cables at any point along the run. This innovative design makes it incredibly versatile for a wide range of applications, from intricate electronic setups to heavy-duty industrial environments.
Superior Cable Organization
Enhanced Protection
Flexibility & Expandability
Easy Installation & Removal
Customizable Cable Breakouts
Variety of Materials & Colors
Cost-Effective Solution
Organizing equipment cables
Protecting engine bay wiring from heat, abrasion, and fluids.
Bundling electrical harnesses in vehicles.
Managing aftermarket accessory wiring.
Ensuring safety and preventing snags in manufacturing lines.
Organizing microphone cables, instrument cables, and speaker wires.
Managing server rack cabling efficiently.
Protecting boat wiring from saltwater corrosion and abrasion.

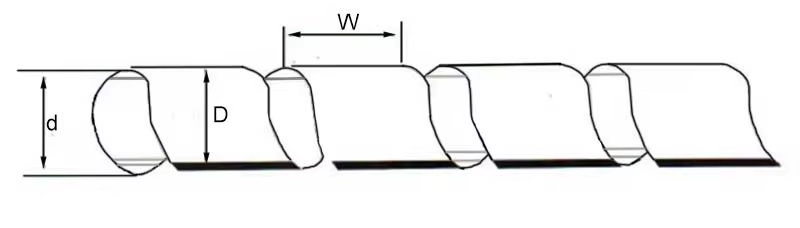

Types | Inner diameter (d)mm | Outer diameter (d)mm | Pitch (W)mm | Thickness (T)mm |
FYX-2S | 2±0.5 | 3±0.5 | 5±1 | 0.5±0.1 |
FYX-3S | 3±0.5 | 4±0.5 | 6±2 | 0.5±0.1 |
FYX-5S | 5±0.5 | 6±0.5 | 8±1 | 0.5±0.1 |
FYX-7S | 7±0.5 | 8±0.8 | 10±1 | 0.5±0.1 |
FYX-8.8S | 8.8±0.5 | 10±0.9 | 12±1 | 0.6±0.1 |
FYX-10.5S | 10.5±0.5 | 12±0.5 | 14±1 | 0.8±0.1 |
FYX-12S | 12±0.5 | 14±0.5 | 16±1 | 1±0.1 |
FYX-14S | 14±0.5 | 16±0.5 | 18±1 | 1±0.1 |
FYX-16S | 16±0.5 | 18±0.5 | 20±1 | 1±0.1 |
FYX-18S | 18±0.5 | 20±0.5 | 22±1 | 1±0.1 |
FYX-22.5S | 22.5±0.5 | 25±0.5 | 22±2 | 1±0.1 |
