On job sites, from commercial building electrical rough-ins to industrial automation wiring, we’ve all seen flexible corrugated conduit and assumed it was made from one material — only to find out later, it was an entirely different polymer. The confusion between polypropylene (PP) corrugated conduit and polyamide (PA, commonly known as nylon) corrugated conduit is extremely common. Both products feature a signature corrugated exterior, are widely used for cable and wire protection, and are available in similar flexible formats for electrical installations.
But look closer, and you’ll see the differences run far beyond surface-level appearance. They’re manufactured from distinct polymer materials, adhere to different global performance standards, and are engineered for vastly different roles in electrical, automation, and infrastructure systems.
In this article, we’ll clear up the confusion by comparing PP corrugated conduit and PA corrugated conduit — not just by how they look, but by the critical material, structural, and performance differences that define their real-world use.
By understanding the core distinctions between PP and PA corrugated conduit, engineers, electrical contractors, system integrators, and procurement professionals will be better equipped to make the optimal choice for their project’s specific requirements, compliance needs, and environmental conditions.
While PP and PA corrugated conduits can look nearly identical at first glance — especially in their flexible, corrugated form — the structural differences between them are significant and directly impact how they perform, install, and hold up in the field.

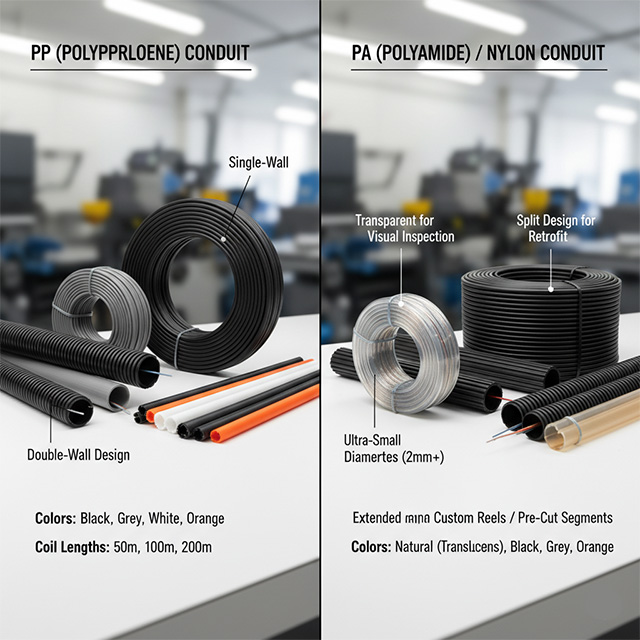

PP corrugated conduit is widely available in both single-wall and double-wall configurations, each tailored to specific use cases.
Single-wall PP conduit is the most common, lightweight, and cost-effective option, designed for general-purpose cable protection where basic flexibility and insulation are required. Double-wall PP corrugated conduit features a smooth inner wall and a corrugated outer wall, delivering a balance of rigidity, impact resistance, and low-friction cable pulling for static installations.
PA corrugated conduit also comes in single-wall and double-wall variants, but its structural design is optimized for flexibility and dynamic performance. Even in standard single-wall formats, PA conduit offers superior bendability without kinking, while its corrugation profile is engineered to withstand repeated flexing and vibration. Double-wall PA conduit retains a smooth inner bore for easy cable routing, with an outer corrugated structure built to absorb mechanical stress in high-movement applications.
PP corrugated conduit is typically supplied in standard coil lengths, most commonly 50m, 100m, or 200m per roll, with straight cut lengths available for short-run indoor installations. This format balances ease of transport and installation for common static wiring projects, with minimal waste for standard building and commercial applications.
PA corrugated conduit, by contrast, is available in both standard coil lengths and extended custom reels, particularly for small-diameter variants used in continuous industrial wiring runs. It is also commonly supplied in pre-cut segments for automated assembly, and many manufacturers offer split corrugated conduit designs (unique to high-flex PA materials) for retrofitting existing cables without disconnection.
PP corrugated conduit is typically available in diameters ranging from 3mm up to 150mm, covering everything from low-voltage signal wiring to large power cable runs. Standard color options include black, gray, white, and orange, with color-coding often used to differentiate between power, communication, and control circuits in building installations.
PA corrugated conduit offers an even broader size range, with ultra-small diameters (as low as 2mm) for precision electronics wiring up to 100mm for heavy-duty industrial applications. It is available in black, gray, and orange
When comparing PP and PA corrugated conduit, wall thickness and sizing specifications can be a major source of confusion — especially since both materials may be certified to the same overarching electrical standards, and may share identical nominal outside diameters.
But behind that matching nominal size are very different material properties, wall thickness tolerances, and performance classifications that directly impact their load-bearing capacity and suitability for different environments. We break down these details in the following sections.
Across global markets, both PP and PA corrugated conduit are governed by core standards including IEC 61386 (for electrical conduit systems for cable management), UL 1696 (for flexible nonmetallic raceways), and EN 50086 (European standard for electrical conduit systems). Within these standards, conduits are classified by mechanical strength, temperature resistance, and flame performance, with separate criteria tailored to PP and PA materials.
For corrugated conduit, the most common classification system is the "light, medium, heavy" duty rating, which defines wall thickness, crush resistance, and impact performance relative to the conduit’s nominal diameter. This system is widely used for both PP and PA variants, but the material properties mean identical duty ratings deliver very different real-world performance.
Let’s take a closer look at 1/2-inch (16mm) corrugated conduit — one of the most common sizes used in electrical and automation work — to compare the wall thickness and dimensional specifications between PP and PA conduits.
For standard medium-duty 16mm PP corrugated conduit, the typical wall thickness ranges from 0.3mm to 0.6mm, with an inside diameter of 12mm to 13mm. Heavy-duty 16mm PP conduit increases wall thickness to 0.7mm to 0.9mm, boosting crush and impact resistance for more demanding static installations.
For equivalent medium-duty 16mm PA corrugated conduit, the nominal wall thickness is nearly identical at 0.3mm to 0.6mm, with a matching inside diameter for comparable cable fill capacity. However, PA conduit features tighter wall thickness tolerances, with more consistent material distribution across the corrugated peaks and valleys — a critical factor for maintaining structural integrity during repeated bending.
The key difference lies in how the material performs at these wall thicknesses. PP is a stiffer, more rigid polymer at the same wall thickness, making it ideal for holding its shape in fixed, static runs. PA, by contrast, retains exceptional flexibility and impact resistance even at thinner wall gauges, allowing for tighter bend radii without cracking or deformation.
We can also compare the two materials in double-wall corrugated conduit formats, where the performance gap widens further. 16mm double-wall PP conduit has a combined wall thickness (outer corrugation + smooth inner liner) of 1.0mm to 1.2mm, optimized for crush resistance in concrete encasement or buried installations. Equivalent double-wall PA conduit maintains a similar overall wall thickness, but delivers superior tensile strength and fatigue resistance for applications where the conduit may be subject to vibration or minor movement after installation.
At first glance, PP and PA corrugated conduits might appear interchangeable — especially when both are flexible, corrugated nonmetallic raceways. But beneath the surface, they are made from fundamentally different polymers with distinct mechanical, thermal, and chemical behaviors.

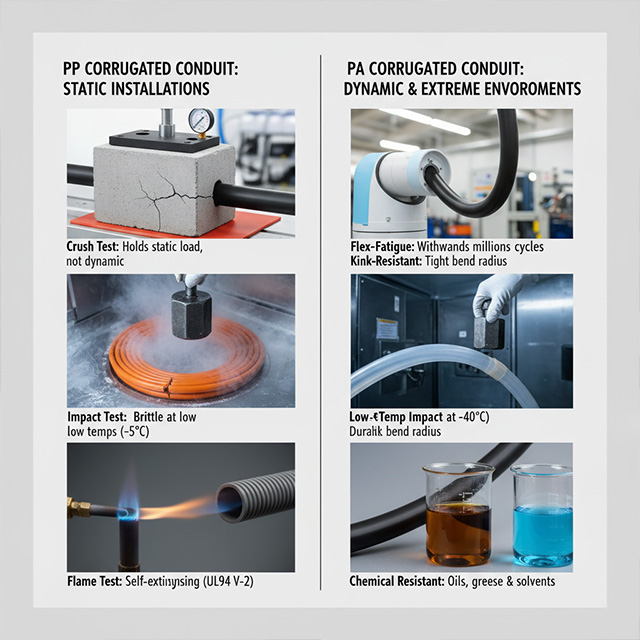

That’s why global standards like IEC 61386, UL 1696, and EN 50086 take very different approaches to performance testing for PP and PA materials. These standards aim to ensure conduit safety and reliability, but the test items, conditions, and pass/fail criteria are tailored to the inherent physical properties of each polymer.
| Test Category | Core Purpose |
| Crush Resistance | Measures ability to maintain structural integrity under compressive load, critical for concrete encasement or buried runs |
| Impact Resistance | Drop test at standard and low temperatures (typically -5°C) to verify resistance to cracking during installation |
| Flame Resistance | Verifies compliance with UL94 V-0 or V-2 ratings, and self-extinguishing properties for building code compliance |
| Water Absorption | Ensures long-term insulation resistance and protection against moisture ingress in damp environments |
| Resistance to Deflection | Assesses deformation under sustained static load for fixed indoor and outdoor installations |
| Chemical Resistance | Evaluates performance when exposed to common acids, alkalis, and cleaning agents |
| Temperature Cycling | Tests dimensional stability across the material’s operating temperature range |
| Sunlight (UV) Resistance | For outdoor-rated conduit, verifies resistance to UV degradation over time |
Key Performance Tests: PA Corrugated Conduit
PA conduit testing is focused on flexibility, dynamic performance, and durability in extreme environments, with more stringent criteria for mechanical stress and temperature extremes:
| Test Category | Core Purpose |
| Flex Fatigue Resistance | Tests ability to withstand repeated bending and flexing without cracking, critical for dynamic applications |
| Low-Temperature Impact Resistance | Drop test at -40°C, far more severe than standard PP requirements, for cold-climate and industrial use |
| Tensile and Tear Strength | Verifies material integrity during installation, vibration, and mechanical stress |
| Oil and Grease Resistance | Evaluates performance when exposed to lubricants, hydraulic fluids, and industrial chemicals |
| High-Temperature Stability | Tests structural and electrical integrity at elevated temperatures (up to 125°C and beyond for high-heat grades) |
| Vibration Resistance | Assesses durability in high-vibration environments like machinery, robotics, and automotive applications |
| Kink Resistance | Verifies the conduit maintains its inner diameter during tight bends, protecting cable integrity |
The core distinction in testing is clear: PP conduit is validated for reliable performance in static, fixed installations with moderate environmental demands, while PA conduit is tested to perform in dynamic, high-stress, and extreme temperature conditions where flexibility and longevity are non-negotiable.

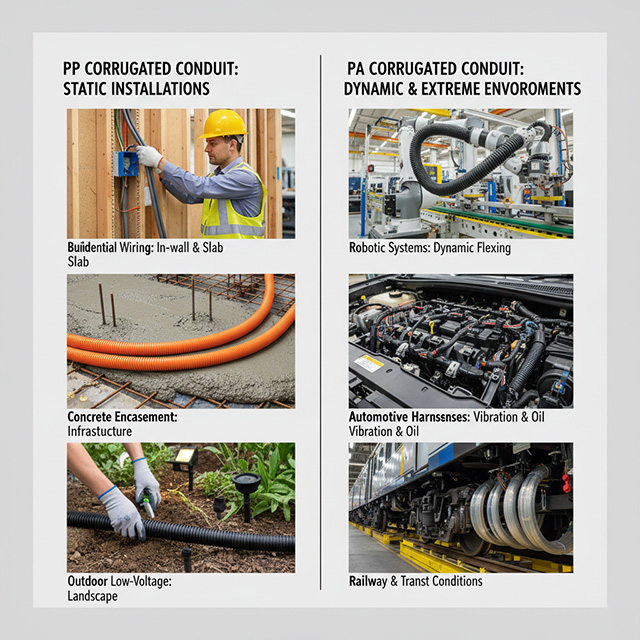

Each corrugated conduit material is engineered for specific use cases. Whether you’re installing wiring in a residential building, embedding conduit in a concrete slab, routing cables in a robotic assembly cell, or protecting wiring in heavy industrial machinery, the right choice of corrugated conduit depends entirely on the jobsite environment, installation type, and long-term performance requirements.
This section breaks down where PP and PA corrugated conduits are most commonly used, and why they are the optimal choice for each application.
Best for: General-purpose electrical installations, static cable protection, and projects where cost efficiency and code compliance are top priorities
Residential and commercial building electrical wiring (in-wall, ceiling, and slab installations)
Cast-in-place concrete encasement for building infrastructure
Outdoor low-voltage landscape lighting and utility wiring
General industrial static cable routing for non-moving equipment
HVAC and building automation control circuit protection
Cable management in telecommunications and data cabling runs
Excellent cost-to-performance ratio for standard static installations
Good moisture and corrosion resistance for dry and damp indoor environments
Easy to cut and install with standard hand tools and snap-in fittings
Compliant with global building and electrical codes for fixed wiring
Good flame retardant options for interior building use
Lightweight and easy to transport and handle on job sites
PP corrugated conduit is the go-to choice for contractors and installers needing a versatile, code-compliant solution for standard static wiring projects, where extreme flexibility or harsh environmental resistance is not required.
Best for: Dynamic, high-stress, and extreme environment applications where flexibility, durability, and mechanical resilience are critical
Industrial automation and robotic systems (dynamic cable management for moving axes)
Machine tool and manufacturing equipment wiring
Automotive and transportation vehicle wiring harnesses
Railway and mass transit electrical systems
Aerospace and marine cable protection
High-vibration machinery and heavy equipment
Low-temperature outdoor installations in extreme climates
Retrofitting and maintenance applications (split conduit variants)
Unmatched flex fatigue resistance for repeated bending and dynamic movement
Broad operating temperature range, with exceptional low-temperature impact resistance
Superior resistance to oil, grease, and industrial chemicals
Excellent tensile strength and abrasion resistance for harsh industrial environments
Tight bend radius capability without kinking, ideal for confined spaces in machinery
Translucent variants for visual cable inspection and troubleshooting
Split conduit options for fast retrofitting without disconnecting existing cables
PA corrugated conduit is the ideal solution for engineering and industrial projects where the conduit must withstand mechanical stress, movement, and extreme conditions, prioritizing long-term reliability and performance over upfront material cost.
PP corrugated conduit and PA corrugated conduit may look nearly identical on the shelf or on the job site — with matching corrugated exteriors and overlapping size ranges — but as we’ve outlined throughout this article, their differences run much deeper than appearance.
From structural design and wall thickness specifications, to material-specific performance testing and real-world application suitability, each corrugated conduit type is defined by unique polymer characteristics and industry standard requirements.
By understanding these critical distinctions — and the standards that govern their performance — engineers, contractors, and procurement teams can make informed, confident decisions when selecting a corrugated conduit system. Whether your priority is cost-effective code compliance for a building project, or extreme durability for dynamic industrial machinery, there is a conduit material that fits your needs. Choosing the right one will streamline installation, reduce long-term maintenance risk, and ensure reliable cable protection for the lifetime of your project.
At FuYuXuan, we specialize in manufacturing high-quality PP and PA corrugated conduit systems for a wide range of electrical, industrial, and commercial applications. With advanced production capabilities, our products are certified to IEC, UL, CE, and RoHS standards, with a full portfolio of compatible fittings and accessories to support every project.
Whether you need cost-effective PP conduit for building electrical installations, high-performance PA conduit for industrial automation, or custom solutions for specialized applications, FuYuXuan delivers reliability, compliance, and innovation in every product.
Thank you for reading! We hope this guide is helpful, and we wish you success in your upcoming projects.
