The process of threading wire through corrugated conduit is a fundamental task in electrical installations. This task, although common, can present challenges without the proper techniques and tools. Whether you're a seasoned electrician or a DIY enthusiast, understanding the intricacies of this task is essential to ensure efficiency and safety. In this comprehensive guide, we will delve into the methods and best practices for pulling wire through corrugated conduit, offering insights that will enhance your electrical projects.
Corrugated conduit is a flexible type of conduit often used in various electrical installations due to its adaptability and ease of installation. Unlike rigid conduit, the corrugated design allows for easy bending around obstacles, making it ideal for environments with limited space or complex pathways. However, its flexibility also requires specific techniques to ensure that wire pulling is done smoothly without damaging the wire insulation.

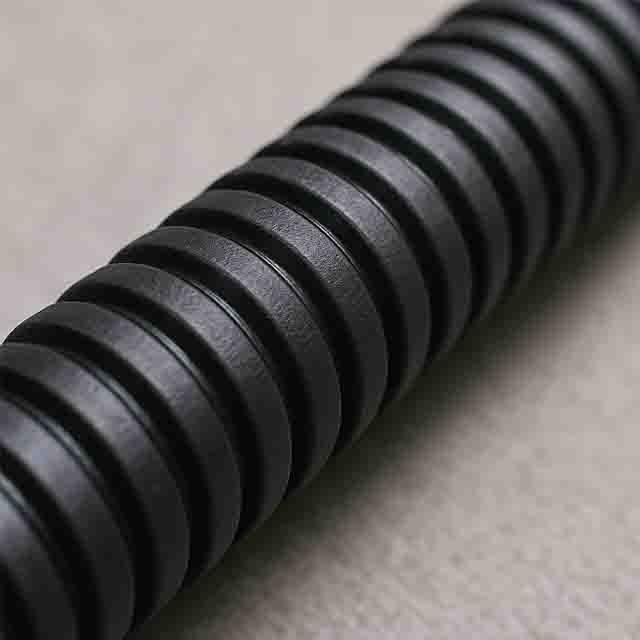

The corrugated conduit is characterized by its ridged design, which provides both strength and flexibility. This feature makes it highly suitable for installations in tight or awkward spaces where rigid conduit would be impractical. Additionally, the ability to bend without special tools saves time and reduces the need for fittings, contributing to a more streamlined installation process.
Corrugated conduits are commonly used in residential, commercial, and industrial settings. They are particularly advantageous in environments with frequent changes, such as renovations, where their flexibility allows for easy adjustments. Moreover, they are ideal for protecting wires in outdoor installations, as the design can withstand various environmental conditions.
While corrugated conduit offers many advantages, its flexibility can lead to complications during wire pulling. The ridges can cause wires to snag, especially if the conduit path includes sharp bends or turns. Understanding these challenges is crucial to implementing strategies that ensure smooth wire installation without compromising the integrity of the wire insulation
Before embarking on the task of pulling wire through corrugated conduit, it is crucial to assemble the necessary tools and materials. These include:
Fish tape is an indispensable tool for guiding the wire through the conduit. It consists of a long, narrow strip of metal or fiberglass designed to navigate through conduit pathways. Pulling rods, on the other hand, are more rigid and can be connected to extend their length, offering greater control in certain scenarios.
A non-conductive, wire-pulling lubricant can significantly reduce friction, making it easier to pull wires through the conduit. This lubricant is essential in long runs or conduits with multiple bends, as it minimizes resistance and protects the wire insulation from abrasion.
Wire strippers and cutters are essential for preparing the wire ends and ensuring clean cuts. Proper preparation of the wire ends facilitates a smooth attachment to the fish tape or pulling rod, preventing snagging and ensuring a secure connection.
A conduit cutter is specifically designed for cutting through corrugated conduit without deforming it. Accurate cuts are crucial for fitting connectors and maintaining the conduit’s structural integrity. Additionally, wearing protective gear such as safety glasses and gloves is essential to safeguard against sharp edges and accidental injuries during the installation process.
Preparation is key to a successful wire-pulling operation. Begin by inspecting the conduit for any obstructions or damage that could impede the process. Measure the length of the conduit run to determine the amount of wire needed, adding extra length to accommodate connections and terminations.
Thoroughly inspect the conduit for any signs of damage, such as cracks or sharp edges, which could damage the wire insulation. Accurate measurement of the conduit length is vital to avoid running out of wire mid-installation. Add a buffer to your wire length calculations to account for potential errors and ensure ample wire for connections.
Plan the conduit route carefully, considering factors such as bends and turns that may increase resistance. It's advisable to minimize the number of bends, as each bend adds friction and difficulty to the wire-pulling process. When possible, use sweeping bends instead of sharp angles to facilitate smoother wire transitions.
Ensure the work area is organized and free from obstacles that could interfere with the wire-pulling process. Lay out all tools and materials within easy reach to streamline the installation. Having a clear and organized workspace reduces the risk of accidents and allows for more efficient task completion.
Inserting Fish Tape: Begin by feeding the fish tape into the conduit from one end. Push the tape gently but firmly, allowing it to follow the conduit path. The flexibility of corrugated conduit can cause the tape to snag, so patience and gentle maneuvering are essential. Use smooth, controlled movements to prevent the tape from bending or kinking.
Attaching Wire: Once the fish tape emerges from the other end of the conduit, securely attach the wire to the end of the tape. Use electrical tape to bind the wire and tape together, ensuring a smooth, snag-free connection. The attachment should be firm enough to withstand the pulling force without detaching.
Pulling the Wire: Slowly retract the fish tape, pulling the wire through the conduit. Apply steady pressure and avoid jerking motions, as these can damage the wire or cause it to become dislodged from the tape. If resistance is encountered, pause and adjust the angle of pull to ease the wire through.
Assembling Rods: Connect the pulling rods to achieve the desired length. Insert the leading rod into the conduit, carefully guiding it through the twists and turns. The rigidity of pulling rods offers greater control, making them suitable for longer or more complex conduit runs.
Securing the Wire: Attach the wire to the end of the rod using a pulling sock or grip designed for this purpose. This ensures a secure connection that can withstand the pulling force. Verify the attachment is secure before proceeding to avoid detachment during the pull.
Pulling the Wire: With the wire securely attached, begin pulling the rods back through the conduit. Similar to fish tape, apply consistent pressure and use lubricant as needed to ease the process. Pause periodically to check for snags and ensure the wire is moving smoothly.
In scenarios where traditional methods prove challenging, a vacuum can be employed to facilitate wire pulling. This involves attaching a lightweight line, such as string or twine, to a small foam plug. The vacuum suction draws the plug through the conduit, pulling the line with it. The line can then be used to pull the wire through.
Setting Up the Vacuum: Position the vacuum at one end of the conduit and ensure it is securely sealed to create adequate suction. Attach a lightweight line to a foam plug that fits snugly inside the conduit.
Executing the Pull: Activate the vacuum to draw the plug and line through the conduit. This method can be particularly effective in long or complex runs where traditional pulling methods face significant resistance.
Transferring to Wire: Once the line is through, attach the wire and carefully pull it back through the conduit. Ensure the line is strong enough to support the wire's weight and avoid pulling too quickly to prevent breakage.
Even with meticulous planning, challenges may arise during the wire-pulling process. Here are some common issues and their solutions:
If the wire becomes stuck, gently push and pull to loosen the obstruction. Avoid forceful tugs that can damage the wire insulation. If necessary, withdraw the wire and inspect for kinks or damage that may be causing the snag. Realign the wire and reattempt the pull with adjusted technique.
Apply additional lubricant to reduce friction. Ensure that the lubricant is compatible with the wire insulation to prevent degradation. In cases of extreme friction, consider rerouting the conduit to minimize bends or using pulling rods for better control.
Ensure that wires are laid out straight before pulling to prevent twisting. If twisting occurs, carefully straighten the wires and reattempt the pull. Use a swivel connector if available to prevent twisting during the pull and maintain wire integrity.
Safety is paramount when working with electrical installations. Always adhere to safety guidelines and wear appropriate protective gear. Ensure that the power is turned off before beginning any work with electrical components. Additionally, be mindful of sharp edges on both the conduit and tools, and handle all materials with care.
Wearing PPE, including safety glasses and gloves, is crucial to protect against potential hazards. Sharp edges and electrical components pose significant risks, so comprehensive protection is necessary to prevent injury.
Ensure all power sources are deactivated before beginning any wire-pulling activities. Verify with a voltage tester to confirm the absence of live electricity. This precautionary step is vital to prevent electrical shocks and ensure a safe working environment.
Handle tools and materials with care to prevent accidents. Maintain sharpness and functionality of tools like wire cutters and conduit cutters to ensure clean, precise cuts. Proper tool maintenance contributes to a safer and more efficient installation process.
Pulling wire through corrugated conduit requires a blend of skill, patience, and the right tools. By understanding the properties of corrugated conduit and employing effective wire-pulling techniques, you can achieve a successful installation that meets safety standards and functional requirements. Whether you're working on a residential or commercial project, these insights will empower you to handle wire pulling with confidence and precision. Remember, meticulous preparation and adherence to safety protocols are key to a smooth and successful wire-pulling operation.
