How to Choose Flexible Corrugated Conduit: Test Guide

Why third-party proof matters more than a supplier's brochure

When you buy flexible corrugated conduit for cable and wire protection, every manufacturer says their product is "high quality." Buyers who have been let down by brittle tubing, failed flame tests, or wrong-size diameters stop trusting those words and look for independent verification instead.

The most reliable signal is not a sales pitch — it is what independent labs, standards bodies, and industry review sites have actually measured. This guide explains the test methods professionals use, shows how a real industry roundup rates Chinese conduit makers, and lines those benchmarks up with what Fuyuxuan ships today. For a plain-language walkthrough of these standards, third-party buyer's guides such as ekabel24's Corrugated Conduit: Ultimate Buyer's Guide explain the different types, compressive strength, and the DIN EN 61386 standard for specifiers.

Test methods used by independent labs

Independent reviewers and market research do not make up scores. They benchmark against published standards. The four that matter most for corrugated conduit:

1.  UL 94 — flammability of plastic materials
   UL 94 from Underwriters Laboratories is the global benchmark for flame behavior. A V-0 rating (the strictest grade in common use) means a vertical sample stops burning within 10 seconds after two ignitions, with no flaming drips that ignite cotton below. For conduit used inside electrical cabinets or vehicles, V-0 is what buyers ask for.

2.  IEC 61386 — conduit systems for cable management
   This IEC standard defines the mechanical (compression, impact), thermal, and electrical properties of conduit systems. Independent reviewers use it to confirm a product meets a recognized specification, not a factory's "own standard."

3. IP rating (IEC 60529) — ingress protection
   An IP68 rating (dust-tight and protected against continuous immersion) tells buyers the conduit can survive outdoor and washdown conditions. Test houses check this against IEC 60529.

4. RoHS / REACH — substance restrictions
   For shipments to the EU, independent labs confirm the absence of restricted substances (lead, cadmium, certain phthalates) under RoHS, and chemical safety under REACH. A clean third-party test report is what gets the goods through customs and satisfies downstream OEMs.

Industry research backs the same shortlist. PW Consulting's Polyamide Corrugated Conduit Market 2026 finds that abrasion resistance, compliance marks (UL94, RoHS) and certified material grades (PA6/PA12/PA66) are what separate serious suppliers from the rest.

How independent reviewers rank conduit makers

It is not just labs. Editorial review sites also benchmark suppliers. A real example we tracked: Gordon Electric's "TOP 8 Plastic Flexible Conduit Manufacturer in China" ranks makers by measurable criteria — material range (PA/PP/PE), flame ratings, international certifications, and export logistics — not by advertising spend.

What these third-party roundups consistently value:

• Material breadth — can one supplier cover PA, PP, and PE?

• Certified production — ISO 9001, and IATF 16949 for automotive wiring.

• Verified specs — published working-temperature ranges and flame classes, not vague "high quality."

• Export readiness — stated lead times, OEM/ODM, and traceable raw materials.

Fuyuxuan against the independent benchmarks

Here is how our published specifications line up with the frameworks above:

These are the figures a buyer's own quality team will check. Publishing them next to the standard name ("V-0 per UL 94") is what turns a claim into proof.

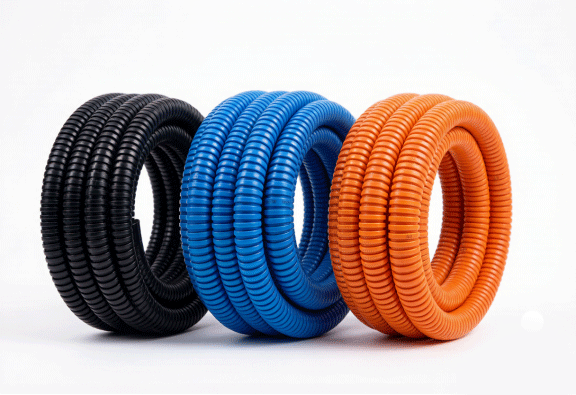

Material comparison: PA vs PP vs PE

A 2026 industry review — Data Insights Market's 2026 polyamide corrugated conduit market report — points to the same ordering: PA leads on toughness and temperature, PP on chemical resistance, and notes that buyers reward compliance-led suppliers over price-led ones.

Red flags independent testers catch

When a supplier cannot show third-party proof, watch out for:

1. No UL 94 / IEC 61386 reference — only the words "fire resistant."

2. Vague temperature claims — "wide range" with no numbers.

3. No RoHS/REACH report for EU shipments.

4. No IATF 16949 on automotive-grade conduit.

5. No stated diameter tolerance — wrong OD breaks fittings and IP seals.

A supplier that answers these with dated, named test reports is the one worth sending an RFQ to.

Where Fuyuxuan conduit is used

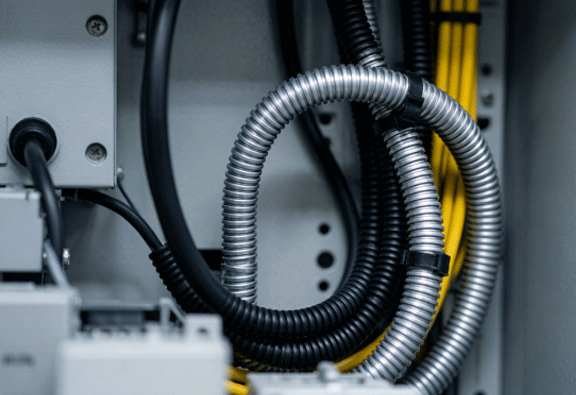

Fuyuxuan flexible corrugated conduit is specified for demanding environments — from new-energy-vehicle wiring harnesses to solar PV arrays and industrial electrical cabinets. The same third-party benchmarks above (temperature range, flame class, IP rating) decide which material fits each job.

FAQ

Q1: What does UL 94 V-0 mean for corrugated conduit?
A: It is the strictest common flammability grade under UL 94. A V-0 sample must stop burning within 10 seconds after ignition, with no flaming drips. For conduit inside cabinets or vehicles, V-0 is the grade most buyers specify.

Q2: Is PA or PP better for flexible conduit in cable protection?
A: PA (nylon) is better on abrasion resistance and temperature range (−40 to +150 °C), and it typically reaches V-0. PP resists chemicals better and costs less. Use PA for harsh or automotive duty, PP for chemical-exposure routes.

Q3: Do I need RoHS and REACH for conduit exports?
A: For the EU, yes. Independent labs confirm restricted-substance compliance under RoHS and chemical safety under REACH; the test report is what clears customs and meets OEM downstream requirements.

Q4: What certification proves automotive-grade quality?
A: IATF 16949 (the automotive QMS standard), usually together with ISO 9001. Fuyuxuan holds both, which is why our conduit is used in new-energy-vehicle wiring harnesses.

Q5: How do I verify a conduit supplier's claims?
A: Ask for named third-party test reports — UL 94, IEC 61386, RoHS/REACH — plus ISO 9001 / IATF 16949 certificates, and check the published temperature and diameter tolerances against your installation spec.
