Most corrugated conduit connections are made with a fitting designed for the exact conduit type, size, and installation environment. The basic process is to cut the conduit cleanly, insert or attach the approved connector, secure it to the box, panel, coupler, or next conduit section, and confirm the connection is mechanically tight without crushing the conduit.
Because corrugated conduit is flexible and ribbed, it should not be treated like smooth rigid conduit. Reliable electrical conduit connections depend on using compatible fittings, following the manufacturer’s instructions, and meeting the electrical requirements for the project location
Corrugated conduit is a flexible raceway used to help route and protect electrical wiring. Its ribbed design allows it to bend around corners, equipment, framing, machinery, or landscape features more easily than rigid conduit.
It is commonly used where flexibility is helpful, such as:
Equipment connections
Short runs to junction boxes
Low-voltage wiring pathways
Outdoor lighting routes, when the conduit type is rated for outdoor use
Areas where vibration or movement may occur
Retrofit projects where rigid conduit would be difficult to install
Not all corrugated conduit is suitable for every use. Some types are intended for electrical wiring, while others are used for cable protection, communications wiring, irrigation controls, automotive wiring, or general sleeving. Before you connect corrugated conduit, confirm that it is suitable for the conductors, environment, and application.
The best way is to use a listed or manufacturer-approved fitting made for that conduit type and diameter. Corrugated conduit usually connects with fittings that grip the ribbed outer wall, compress around it, thread into it, or clamp onto it.
A typical connection includes these steps:
Match the fitting to the conduit size and type.
Cut the conduit squarely and cleanly.
Remove burrs, sharp edges, or loose plastic.
Insert the conduit into the fitting as directed.
Tighten the gland nut, compression ring, clamp, or locknut.
Attach the fitting to the box, enclosure, coupler, or next conduit section.
Tug gently to confirm the connection is secure.
Inspect the connection for gaps, strain, or crushed conduit.
If the conduit is part of an electrical installation, the connection should also maintain the required protection, support, grounding or bonding approach, and environmental rating.

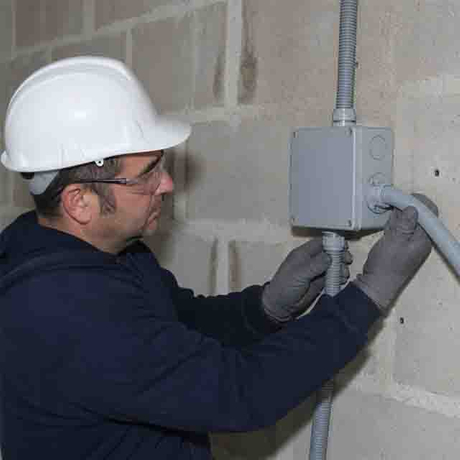

Yes, in many cases corrugated conduit can be connected directly to an electrical box, junction box, control box, or enclosure using the correct box connector. The fitting usually has one end that attaches to the conduit and another end that passes through a knockout in the box.
A common connection method looks like this:
Remove the correct-size knockout from the box.
Insert the threaded end of the connector through the opening.
Secure it with the supplied locknut or fastening method.
Push, thread, or clamp the corrugated conduit into the fitting.
Tighten the connector without over-compressing the conduit.
The box connector must be compatible with the box material, conduit type, and installation location. For example, a damp or outdoor location may require a fitting that helps maintain a weather-resistant or liquidtight connection.
The right fitting depends on the conduit material and application. Common fitting styles include:
Straight connectors: Used to connect corrugated conduit to a box, panel, enclosure, or device.
90-degree connectors: Used when the conduit needs to enter a box at a right angle.
Couplings: Used to join two sections of conduit together.
Adapters: Used to transition from corrugated conduit to another conduit type or thread pattern.
Compression fittings: Tighten around the conduit to create a secure mechanical hold.
Liquidtight fittings: Used with conduit systems that need protection from moisture, splashing, or certain outdoor conditions.
Snap-in or push-in fittings: Sometimes used for lighter-duty or low-voltage applications, depending on the product.
Avoid using generic plumbing parts, tape-only connections, glue-only connections, or improvised clamps for electrical conduit connections. A fitting that appears to hold the conduit may still fail to provide proper wire protection or code-compliant installation.
Choose the connector based on the trade size or outside diameter listed for the corrugated conduit. Do not rely on appearance alone, because flexible conduit sizes can look similar.
To choose the correct size:
Check the printing or markings on the conduit.
Review the packaging or product specification sheet.
Match the connector to the conduit trade size.
Confirm the connector is rated for the same conduit type.
Verify that the fitting is suitable for indoor, outdoor, dry, damp, wet, or buried conditions as needed.
If you are replacing an old fitting, bring the conduit type and size information with you when selecting the new connector. A loose connector can pull out, while an undersized connector can crush or damage the conduit.
Yes. Two sections of corrugated conduit can usually be joined with a coupling made for that specific conduit. The coupling grips each conduit end and keeps the raceway continuous.
The general process is:
Cut both conduit ends square.
Make sure each end is clean and undamaged.
Insert the first conduit end into one side of the coupling.
Tighten or lock the fitting according to the connector design.
Insert the second conduit end into the opposite side.
Tighten the second side.
Check that both sections are fully seated.
For electrical wiring, the coupling should not create a sharp edge, reduce the internal space excessively, or leave a gap where conductors could be exposed. If the connection will be outdoors or in a damp area, use a coupling rated for that environment.
Yes, but you normally need an adapter or transition fitting. Corrugated conduit and rigid conduit have different shapes, wall structures, and fastening methods, so they should not simply be pushed together.
A proper transition may include:
A corrugated conduit connector on the flexible side
A threaded adapter on the rigid conduit side
A junction box used as the transition point
A listed coupling designed for the two conduit types
Using a box as the transition point is often the cleanest solution because each conduit type can terminate with its own approved connector. This also gives you access to the wiring if inspection, maintenance, or future changes are needed.
Usually, no. Most corrugated conduit connections are mechanical, meaning the fitting grips, clamps, threads, or compresses around the conduit. Glue is not a substitute for an approved electrical fitting.
Some conduit systems may use solvent cement, sealant, or adhesive as part of a manufacturer-specified installation, but that is product-specific. If adhesive is not included in the fitting instructions, do not assume it should be used.
Glue-only connections can fail because corrugated surfaces have alternating ridges and grooves, making it difficult to create a uniform bond. They may also make the connection difficult to inspect, repair, or modify later.
Tape should not be used as the primary method to connect corrugated conduit in an electrical installation. Electrical tape, duct tape, or waterproof tape may appear to hold the conduit temporarily, but it does not provide a dependable mechanical connection.
Tape may also loosen over time because of:
Heat
Moisture
Dust
Movement
UV exposure
Pulling force from wires or cables
Vibration from nearby equipment
If you need a temporary label, bundle, or minor abrasion guard, tape may have a limited support role. But to connect corrugated conduit securely, use the correct connector, coupling, adapter, or box fitting.
A connector should be tight enough to hold the conduit firmly, but not so tight that it crushes, splits, or deforms the conduit. The fitting should grip the conduit evenly and maintain a smooth path for the wiring inside.
After tightening, check for these signs of a good connection:
The conduit does not pull out with a light tug.
The connector sits straight, not crooked.
The conduit is not flattened or cracked.
No sharp edge is exposed where wires pass through.
The locknut or fastening ring is seated securely.
The box or enclosure opening is properly covered by the fitting.
If the fitting continues to slip even after tightening, it may be the wrong size or the wrong style for that conduit.
A clean cut makes the connection easier and helps protect the wiring. Use a tool that matches the conduit material and thickness, such as a utility cutter, conduit cutter, fine-tooth saw, or manufacturer-recommended cutting tool.
For a better cut:
Measure the required length carefully.
Mark the cut location clearly.
Cut square across the conduit rather than at an angle.
Remove loose material from the cut end.
Smooth sharp edges if needed.
Test-fit the connector before pulling conductors.
Avoid jagged cuts, crushed ends, or cuts that land awkwardly across a ridge in a way that prevents the fitting from seating correctly.
In many installations, it is easier and cleaner to install the conduit path first, then pull the wire through the completed raceway. This helps protect the conductors and confirms that the conduit connections are stable.
However, the best sequence can depend on the project. Short flexible sections are sometimes assembled with conductors already in place, especially when connecting equipment or working in tight spaces.
Before pulling wire, make sure:
The conduit route is complete.
Couplings and connectors are tight.
No sharp edges are present.
The bends are not too tight.
The conduit is properly supported.
There is enough space for the conductors being installed.
If the wire snags during the pull, stop and inspect the conduit path rather than forcing it.
Some corrugated conduit is rated for outdoor use, but not all of it is. Outdoor installations may involve sunlight, rain, temperature changes, soil contact, insects, impact, and moisture. The conduit and fittings must be suitable for those conditions.
For outdoor electrical conduit connections, check whether the product is rated for:
UV exposure
Wet or damp locations
Direct burial, if applicable
Temperature range
Impact resistance
Liquidtight performance, if required
Outdoor connections often need fittings designed to reduce water entry. A standard indoor connector may not be appropriate for a wet location, even if it physically fits the conduit.
Only conduit specifically rated for burial should be installed underground. Many flexible corrugated products are not designed for soil pressure, moisture exposure, or long-term underground conditions.
If burial is part of the project, confirm:
The conduit is approved for direct burial or use in an underground raceway system.
The fittings are also rated for burial or wet locations.
The burial depth meets local requirements.
The wire or cable type is suitable for the environment.
The route is protected from damage.
Underground electrical work can involve stricter requirements than above-ground installations. When in doubt, consult a qualified electrician or local authority before you connect corrugated conduit below grade.
Use a conduit and fitting system designed for wet or liquid-exposed conditions. The connection should help prevent water from entering the raceway or enclosure and should remain secure despite expansion, contraction, and movement.
A wet-location connection may require:
Liquidtight flexible conduit
Liquidtight connectors
Gaskets or sealing washers
Properly rated boxes or enclosures
Drip loops or routing that reduces water intrusion
Corrosion-resistant fittings where needed
Do not assume that a tight-looking connection is watertight. The fitting must be made and rated for that purpose.
Common mistakes include using the wrong fitting, overtightening the connector, leaving sharp cut edges, and failing to support the conduit properly.
Avoid these issues:
Connecting different conduit types without a proper adapter
Using tape as the main connector
Using indoor fittings outdoors
Pulling wires through a loose or incomplete conduit path
Forcing a connector onto the wrong conduit size
Leaving conduit ends cut at an angle
Overfilling the conduit with too many conductors
Creating bends so tight that wires are hard to pull
Ignoring grounding, bonding, or support requirements
Mixing parts from incompatible systems
A strong connection should protect the wiring, stay in place, and match the conditions where it is installed.
After connecting the conduit, perform a simple inspection. The fitting should be firmly attached to the conduit and to the box, coupling, or enclosure. It should not wobble, slip, or expose the wiring path.
Check the connection by looking for:
Full insertion of the conduit into the fitting
A properly tightened gland, clamp, or locknut
No visible cracks or crushed sections
No exposed conductor insulation at the entry point
No gap that could allow damage or moisture entry
No sharp edges inside the connector
Proper support close to the connection, where required
A gentle pull test can help confirm the conduit will not separate during normal handling. Do not yank hard enough to damage the installation.
Often, yes. Many corrugated conduit fittings can be installed with basic tools such as a cutter, screwdriver, pliers, adjustable wrench, or locknut wrench. Some snap-in fittings are designed for tool-light installation.
That said, the tool requirements depend on the fitting. Larger connectors, liquidtight fittings, and industrial conduit systems may require more specific tools to tighten the connection correctly.
Useful tools may include:
Measuring tape
Marker
Conduit cutter or utility cutter
Screwdriver
Adjustable wrench
Pliers
Deburring tool or file
Fish tape or pull string
Always protect the conductors from sharp edges and avoid using tools in a way that damages the conduit.
In many electrical installations, conduit must be secured or supported so that fittings are not carrying unnecessary strain. Flexible conduit can sag, move, or pull on the connection if it is not supported correctly.
Support is especially important when:
The run is long
The conduit is overhead
The conduit connects to equipment that vibrates
The installation is outdoors
The conduit enters a box from below or from the side
The conduit may be bumped or pulled
Use straps, clamps, hangers, or supports that are compatible with the conduit material. Avoid pinching the conduit or fastening it so tightly that it restricts the internal wiring path.
No. Conductors should remain protected throughout the raceway, including at each connection point. A connector should not leave wire exposed between conduit sections, between the conduit and box, or at a transition to another raceway.
If wire is visible at a connection, the installation may need a different fitting, a junction box, a longer conduit section, or a properly sized adapter. The purpose of corrugated conduit is to create a protected path, so gaps defeat the purpose of the installation.
Not always. “Corrugated conduit” describes the ribbed shape, but it can refer to different materials and systems. Flexible metal conduit, liquidtight flexible metal conduit, liquidtight flexible nonmetallic conduit, electrical nonmetallic tubing, and other flexible raceways may all have different connection requirements.
Before buying fittings, identify the exact conduit type. The connector for one flexible raceway may not be acceptable for another, even if the sizes seem close. Material, wall thickness, rib pattern, and intended use all matter.
For simple low-voltage or non-energized cable protection tasks, a knowledgeable DIYer may be able to install corrugated conduit safely if local rules allow it. For electrical wiring that connects to a panel, branch circuit, outdoor power, equipment, or a wet location, hiring a qualified electrician is often the safer choice.
Consider professional help if:
You are working with line-voltage wiring.
The conduit connects to a breaker panel or service equipment.
The installation is outdoors, underground, or in a wet location.
You are unsure about conduit fill, conductor type, grounding, or bonding.
Permits or inspections are required.
The project involves commercial, industrial, or rental property.
A properly installed connection is not just about making the conduit stay together. It also needs to protect the wiring and meet the electrical requirements for the installation.
For a typical straight connector into a junction box, use this general process:
Turn off power before working near existing wiring.
Confirm the conduit and fitting are compatible.
Measure and cut the conduit to length.
Clean the cut end.
Remove the correct knockout from the box.
Insert the connector into the box opening.
Tighten the locknut or fastening ring.
Insert the corrugated conduit into the fitting.
Tighten the connector according to its design.
Check that the conduit is seated, straight, and secure.
Pull or route conductors only after the pathway is safe and smooth.
Inspect the finished connection before energizing the circuit.
This process may vary by fitting type, so always follow the instructions that come with the connector.
Before closing boxes, energizing circuits, or covering the conduit, review the entire run. A quick final inspection can prevent future failures and make the installation easier to maintain.
Check that:
Each connector matches the conduit type and size.
Every coupling is tight and fully seated.
Box entries are secured with the correct fittings.
The conduit is supported and not under strain.
Bends are smooth and not kinked.
Conductors pull freely without damage.
Outdoor or wet-location fittings are properly rated.
No temporary tape-only connections are being used.
The installation follows local electrical requirements.
When you connect corrugated conduit correctly, the result is a flexible, protected wiring path that looks clean, resists movement, and supports a safer electrical installation.
